Class 1000 Movable Softwall Cleanroom Booth For Food Beverage Industry

Certification
Good quality Cleanroom Air Shower for sales
Good quality Cleanroom Air Shower for sales
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Class 1000 Movable Softwall Cleanroom Booth For Food Beverage Industry

China Class 1000 Movable Softwall Cleanroom Booth For Food Beverage Industry supplier

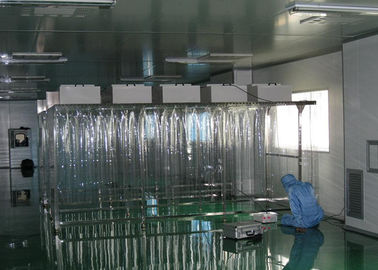

Large Image :  Class 1000 Movable Softwall Cleanroom Booth For Food Beverage Industry

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-FLB1600

Payment & Shipping Terms:

Minimum Order Quantity: 1SQM
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 2000sqm/month
Contact Now
Detailed Product Description



Class 1000 Movable Softwall Cleanroom Booth For Food Beverage Industry



Quickly detail


 External size : 1600x1600x2596mm
 Internal Size: 1500x1500x2205mm
 Purification rank: Class10000
 HEPA filter efficiency: 99.999%@0.3um
 Laminar flow: vertical
 Air speed :0.3-0.6m/s
 Power: 220V/50HZ


Introduction:

It is for solution when clean air areas need to be created on a small to mid scale, flexible and economical, they may be easily relocated when application requirements change, dimensional and cleanliness class requirement.


Applications:

1: Food industry,

2: aerospace,

 3:life sciences,

 4:biotechnology,

 5: medical devices,

 6:plastic injection module,

 7: electronics assembly

 8:hospital pharmacy



Operating features

1: The ceiling enables flexible placement of fan filter unit, the empty bays cover by powder coated steel panels.
2: the construction utilizing full welded, reinforced, steel tubular sections. The frame is finished with an abrasion-resistance oven-baked powder coat, it is free-standing not require any suspending ceiling supports
3: the PVC anti-static curtain door allowing for easy passage of material and personnel in and out of the clean area. The curtain terminated at a specific distance above the floor to allow for exhaust of clean air out of the clean room.
4: Control box can rapid start up the fan filter unit and lighting.
5: Fan filter unit is the energy efficient external rotor motor design reduces operating costs and has extremely low noise and vibration levels, improving the working conditions in the clean room.
6: the high quality mini-pleats HEPA filter utilizing an improved mini-pleated separation technique to maximize surface area improves efficiency and extends the filter life.





Illustration:

1:  The frame is steel cube with milk powder coated.
2:  M support leg
3:  The wall made from clarity synthetic glass.
4:  FFU control box.
5:  FFU with HEPA filter and pre-filter
6:  Purification lamp
7:  PVC strip curtain
8:  Purification rank class100-1000 (FS209E Stander)


Technical Parameter:


MODEL

KEL-LFB1600

Ex size (mm)
(W*D*H)

1600X1600X2596mm

In size (mm)

1500x1500x2205mm

Purification rank

Class10-300,000(FS209E USA)

HEPA filter

Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)

Pre-filter

Efficiency : 85% @ 5um

Control system

 PC control system / promised speed by control box

Pressure Gauge

 American Dywer pressure

Noise

<50-55 dB  (test point distance is 1m)

 Air velocity
(m3/h)

    0.2-0.5m/s Adjustable   (test point distance is 30cm)

Frame material

 stainless steel/steel with power coated/Cast aluminum profile

Wall frame

Tempered glass / PVC anti-static curtain (option)

Fan

EBM Fan /Taiwan fan/ Domestic fan (option)

Power suppler

    AC110/220v  50HZ/60HZ


Customers design is available.

Note:

moveable laminar flow clean booth Modular, easy-to-clean rigid design with minimal joints.
Single, Two-Stage or Three-Stage HEPA/ULPA filtration can be accommodated.
Removable bulkhead panels enable access to fine dust filter for service from inside the booth.
Re-circulatory Airflow or Single Pass Airflow if solvent or hazardous fumes are present in the process (may also require explosion proof electricals).
Cooling Coils can be fitted to offset heat gains in re-circulatory airflow systems.
HEPA/ULPA gel-seal downflow filters are replaceable from within the boot. Gel-seal is more reliable than conventional gasketed seals.
Voltage-compensating blower(s) ensure stable airflow
