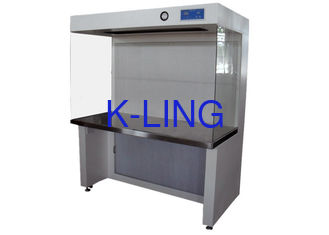

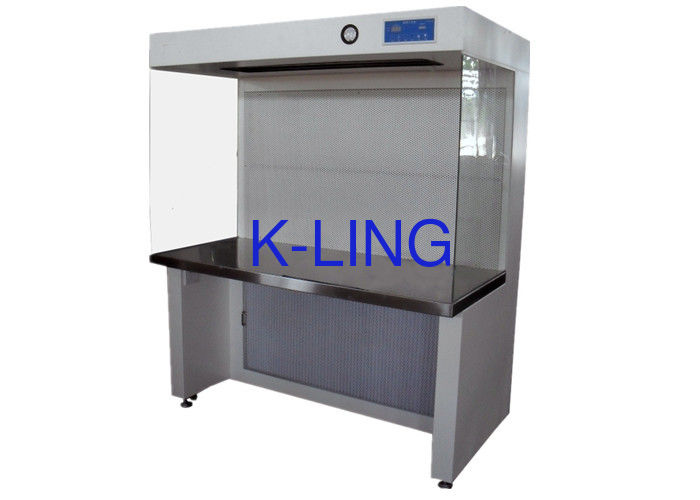

Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light

Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light
Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light

Large Image :  Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-13
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Detailed Product Description
Product Name: Hospital Laminar Cabinets Other Name: Air Flow Bench
Purification: Class100 Material: Inside And Outside Is Steel With Power Coated
Size: 1200x850x1580mm UV Light: 1 Pcs
Control System: Microelectronic Control Board Hepa Filter: Pleats Panel Filter
Efficiency: H14 Power: 220V/50HZ
High Light:

laminar flow clean bench

,

laminar air flow equipment

Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light





Quicky Detail



External size:  1200x850x1580mm

Internal Size:  1180x600x650mm

Purification rank: Class100

HEPA filter efficiency:99.999%@0.3um

HEPA filter size : 1170x610x69

Air speed :0.3-0.6m/s

Power: 220V/50HZ





Company Information :


Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment and air filter,such as : air shower tunnel, air shower room, cleanroom air shower, pass box ,dispensing booth, laminar air flow units, dynamic pass thrus, clean Pass box, pass thrus, portable clean shed,  Laminar flow bench, Hardwall cleanroom, softwall cleanroom, HEPA units,clean shed, clean booth, fan filter unit, Mini-pleats ULPA/HEPA filter, V-cell filter, pocket filter, panel filter, z-line filter,cleanroom aluminum fitting, sandwich panel, sticky mat and so on.



Operating features:



1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.

2: LED control board with CE remark, low operating noise levels

3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

Long –life HEPA air filter for supply air flow.

4: American Dwyer pressure remind of you replace the HEPA filter in regular.





Application :

 Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing
facilities and other research and production environments.




Technical Parameter

MODEL

                            KEL -HCB-2

External size (mm)

(WXDXH)

                       1300x850x1580mm

Work zone (mm)

(WXDXH)

                         1280 x650x600mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         1800m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                        30Wx1

Material

(Option)

1:Entirety Sus201/304.

2:  External is steel with powder coated, Internal is SUS304

4:  External is steel with powder coated. Internal is SUS301

Power

                          450w

 Noise

                        <65dB

Power supply

               110v/ 60HZ  220V-240V AC 50HZ

  Customer’s design is available.

Hospital Steel Laminar Flow Cabinets / Laminar Airflow Bench With UV Light 0



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
