ISO 5 Photoelectric Industrial Laminar Air Flow Cabinet Hood Filtered 220V / 60HZ

Certification
Good quality Cleanroom Air Shower for sales
Good quality Cleanroom Air Shower for sales
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

ISO 5 Photoelectric Industrial Laminar Air Flow Cabinet Hood Filtered 220V / 60HZ

China ISO 5 Photoelectric Industrial Laminar Air Flow Cabinet Hood Filtered 220V / 60HZ supplier

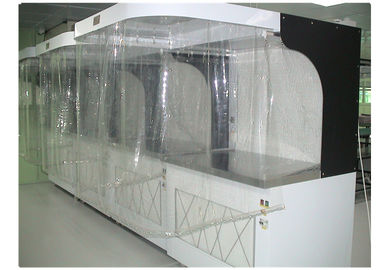

Large Image :  ISO 5 Photoelectric Industrial Laminar Air Flow Cabinet Hood Filtered 220V / 60HZ

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-2

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Contact Now
Detailed Product Description

ISO 5 Photoelectric Industrial Laminar Air Flow Cabinet Hood Filtered 220V / 60HZ





Quicky Detail



External size:  1200x850x1580mm

Internal Size:  1180x600x650mm

The  Cap Size : 1180x1000mm

curtain : PVC with plastic Curtain

Purification rank: Class100

ULPA filter efficiency:99.99995%@0.12um

ULPA filter size : 1170x610x69

Air speed :0.45m/s

Electric : 220V/60HZ





Introduction:



 laminar airflow cabinet hood filtered air is passed through the main chamber of the flow bench in a vertical laminar air stream before being of the clean bench, it is designed for larger –scale process protection in industry application typically requiring multiple units connected in an assembly line configuration, usually it is placed within an ISO class8 clean room to provide an ultra-clean environment directly at the process level.



Applications:



clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture, applications benefiting from the isolated work surface frames design which virtually eliminates vibration.





Operating features:



1: It is manufactured for the most demanding clean room applications, offering a combination of value,

     high quality construction.

2: LED control board with CE remark, low operating noise levels

3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

     Long –life ULPA air filter for supply air flow.

4: Horizontal air laminar flow cabinet/laboratory clean hood adopts wind volume adjustable fan system,
    light-touch type switch and dual-speed voltage regulation device to keep wind speed in working area
     in ideal state.
5:  Horizontal air laminar flow cabinet/laboratory clean hood adopts super thin type aluminum-frame
     clapboard-free high-efficiency air filter which reduces static-pressure tank to the smallest size,
      thus to reduce the size of outer case.
6:  Horizontal air laminar flow cabinet/laboratory clean hood is the newest type bench in present market.
     The front cover may be opened directly for exchanging filter, electr

7: American Dwyer pressure remind of you replace the ULPA Air filter in regular.





Illustration:

6: Pre-Filter      7 :  Fans      1:  Control board    3: ULPA air filter      2: lamp          5: Socket               4: Glass            8: wheel        9: Leg



Technical Parameter



 MODEL

                        KEL-HCB-2

External size (mm)

(WXDXH)

                     1200x850x1580mm

Work zone (mm)

(WXDXH)

                      1180x600x650mm

Purification rank

                     FS209E 100Rank

Display

                    LED Digital Display

Rating airflow(m3/h)

                        1200m3/h

Filtration efficiency

       More than 99.99%@0.3um  H13-H14

 Average wind speed

                         0.3-0.6m/s

  Intensity of illumination

                         >300Lux

      Fluorescent lamp

                           20Wx1

      Material

      (Option)

1:Entirety Sus201/304.

2: External is steel with power coated, Internal is SUS304

3: External is steel with power coated. Internal is SUS201

      Base stand material

 Adopting cold-roll steel plate with corrosion-proof coating

         Power

                                  280w

        Noise

                                 <65dB

        Electrical

                    AC 110V-240V / 50-60HZ

        Net  weight

                                  230kgs

     Gross weight

                                 270kgs

      Packing  size

                       1200x800x1750 mm

Customers design is available.



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
