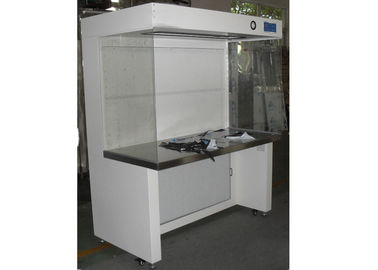

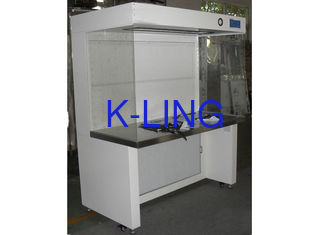

Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E

Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E
Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E

Large Image :  Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E

Product Details:
Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-HCB-3
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 500Sets/month
Detailed Product Description
Prodcuts Name: Hosptial Clean Bench Filtration Step: H13+G2
Purification Rank: ISO5 UV Light: 1PCS
Noise: <62dB Other Name: Laminar Flow Cabinet
Air Speed: 0.45m/s +_20% ULPA Filter: Mini-pleats ULPA Filter
Application: Hosptial Positive Pressure: 1 Pcs
Guarantee: One Year
High Light:

laminar flow clean bench

,

laminar air flow hood

Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E





Quicky Detail



External size:  1500x900x1580mm

Internal Size:  1480x600x650mm

Purification rank : FS209E Rank 100

HEPA / ULPA  filter efficiency:99.99%- 99.9995%@0.3um

HEPA /ILPA filter size : 1250x610x69

Air flow : 2300m3/h

Air speed :0.3-0.6m/s

Noise : <65dB





Company information :



Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter,  z-line filter, and so on.



Introduction:



Clean room positive pressure laminar air  flow cabinet for laboratory filtered air is passed through the main chamber of the flow bench in a vertical laminar air stream before being of the clean bench, it is designed for larger –scale process protection in industry application typically requiring multiple units connected in an assembly line configuration, usually it is placed within an ISO class8 clean room to provide an ultra-clean environment directly at the process level.



Operating features:



1: It is manufactured for the most demanding clean room applications, offering a combination of value, high quality construction.

2: LED control board with CE remark, low operating noise levels

3: Stainless steel or antimicrobial coating on all painted surfaces minimizes contamination.

Long –life HEPA air filter for supply air flow.

 4 : American Dwyer pressure remind of you replace the HEPA filter in regular.

 5 :  Digital control panel, microprocessor control:

      Intuitive keypad with LCD display,ability to remember the settings and performance of the individual:

      Auto-Start, Ventilation, Lighting, Sounds,posiibility configure with, non touch mode,  time counter.

 6 :  bactericides UV lamp in the chamber is working with the programmer

      and the time counter,temperature and humidity sensor, additional work table made

      of acid resistant stainless steel.



Technical Parameter



MODEL

                            KEL -HCB-3

External size (mm)

(WXDXH)

                       1500x900x1580mm

Work zone (mm)

(WXDXH)

                         1480x600x650mm

Purification rank

                      FS209E 100Rank

Rating airflow(m3/h)

                         2300m3/h

Filtration efficiency

          More than 99.99%@0.3um  H13-H14 ,U15

Average wind speed

                      0.3-0.6m/s

Intensity of illumination

                          >300lx

pressure gauge

          America Dwyer pressure watch 1 pcs

UV Light

                              1 pcs

Fluorescent lamp

                                       4 0Wx1

Material

(Option)

1:Entirety Sus201/304.

2:  External is steel with power coated, Internal is SUS304

4:  External is steel with power coated. Internal is SUS301

Power

                            490w

 Noise

                             <65dB

Power supply

               110V / 60HZ  220V-240V AC 50HZ

  Customer’s design is available.

Safety Hosptial Positive Pressure Laminar Flow Cabinet With ULPA Air Filter FS209E 0

Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.





Factory test include:



-- functional test and visual inspection

-- electrical safety tests

-- air velocity testing

-- purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.





Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.





Why you choose K-LING Company ?



Professional sales:

• We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team





Punctual delivery time:



• Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.





Payment Term:



 T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
