Pharmaceutical Industrial Class 100 Clean Room Air Shower With Stainless Steel Nozzle

China Pharmaceutical Industrial Class 100 Clean Room Air Shower With Stainless Steel Nozzle supplier

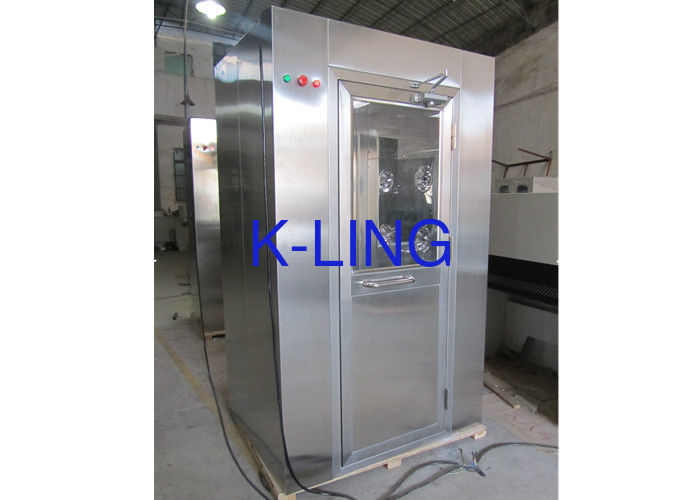

Large Image :  Pharmaceutical Industrial Class 100 Clean Room Air Shower With Stainless Steel Nozzle

Product Details:

Place of Origin: China
Brand Name: K-LING
Certification: CE,
Model Number: KEL-AS1300P

Payment & Shipping Terms:

Minimum Order Quantity: 1set pcs
Price: negotiation
Packaging Details: Poly wood packing
Delivery Time: 8 working days
Payment Terms: T/T, LC.CIF,CNF
Supply Ability: 100Sets/Month
Detailed Product Description
Air Speed: More Than 25m/s Purfication Rank: Class 100
Control System: Microprocessor Air Blowing Way: 3 Side Blowing
Nozzle: Sainless Steel 201 Material: 304 Stainless Steel (t=1.0mm)

Pharmaceutical Industrial Class 100 Clean Room Air Shower With Stainless Steel Nozzle





Quickly detail



External Size: 1400x1000x2180mm

Internal size : 790x930x1910mm

Single person with two side blowering

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 1-2 person

SUS nozzle: 12pcs

Blower way : two side blowing

Air speed :>23m/s

Power :380V/50HZ or 380V/60HZ 3 Phase.



Introduction:



   Stainless steel  Air shower is a related equipment for clean workshop and clean room, which not only
removes dust from the surface of people and goods, but also plays as a role of air lock valve
 to prevent unpurified air from flowing into the clean area. It can be used with all supporting
clean room and clean workshop.





Applications:



It can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.





Operating features :



1: Microelectronics control system with LED display for the shower time.

2: the air shower duration time adjustable from 0-99second.

3: Infrared ray inductor for inside personal shower automatic from two side

4: Human being voice remind of user progress in chamber.

5: Emergency switch help you out of trouble, Comply with CE Test

6: Explosion proof fan for the special purpose.



Parameter :



 KEL-AS1400P1 Series

Model

KEL-AS1400P-1

External size(mm) (WXDXH)

1400x1000x2180

Work zone (mm)(WXDXH)

790x1930x1910

Persons per cycle

1-2 person

Air shower Duration

                        Factory set at 12 second (adjustable)

Material

           Steel with white color epoxy power-coated or Stainless steel

Fan consumption

0.75KWX1sets

Air flow of fan(m3/h)

                                                 1300m3/h

Fan run (r/min)

                                                 2800r/min

Nozzle in stain less steel

                                                       36pcs

Wind speed(m/s)

                                                 > 22-27m/s

Noise level(dB)

                                                   <62dB

LED Fluorescent Lamp

                                                       20wx3





HEPA Filter

Size(mm)

                                              630X630X69mm

Efficiency

                                               99.99%@0.3um

Air velocity

                                             1000(m3/h)

Resistance

                                                  <220pa





Pre-filter

Size(mm)

                                               785x385x21

Efficiency

                                                75% @ 5um

Resistance

                                                   <30 Pa

Electrical

Power supply

                                               380v/50Hz





































































Company information :



Keling Purification Technology Co., Ltd engaged in air purification field for many years, product have clean room equipment , HVAC air filter, clean room product such as clean room air shower, Air shower room for GMP /QS Standard, stainless steel air shower room, Pass box, pass thru, Laminar flow bench, Hard wall clean room, soft wall clean room, HEPA filter unit series, clean shed, clean booth, laminar flow booth Dispensing booth, sampling booth, down flow booth, fan filter unit(EBM Fan), static pass boxes, medical clean pass boxes, pharmaceutical static pass boxes,Mini-pleats ULPA/HEPA air filter, V-cell filter, pocket air filter, panel air filter, bag air filter,  z-line filter, and so on .



Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



1. Superior Quality

Quality is our biggest concern. We are always striving
for quality improvement from the first beginning.

2. Competitive Price

Competitive price is one of our advantages compared to
others. We are always working hard to lower down the cost
while still improve or keep the quality.

3. Customer first service

Focus on customization, we provide the free design by our
designers. Reply with 24 hours if any questions and pack
in time for delivery.

4. All-in-one convenience

We are dedicated to give you all-in-one service. You just
tell us your demand, then we will take care of your demand,
design drawings, build the clean room and provide you best after sale.


5. Product diversification

We are not only undertake clean room construction, clean
booth construction, etc., but also an agent to export
accessories from other factory. You could always choice the
 suitable products in our company.



Payment Term:



T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.



Pharmaceutical Industrial Class 100 Clean Room Air Shower With Stainless Steel Nozzle
