High Efficiency Stainless Steel Air Shower Clean Room In Pharmaceutical Industry

High Efficiency Stainless Steel Air Shower Clean Room In Pharmaceutical Industry
High Efficiency Stainless Steel Air Shower Clean Room In Pharmaceutical Industry

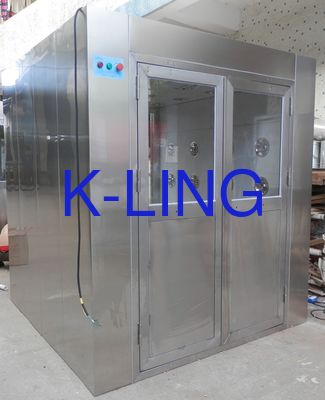

Large Image :  High Efficiency Stainless Steel Air Shower Clean Room In Pharmaceutical Industry

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE,
Model Number: KEL-AS1950P
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: NEGOATION
Packaging Details: PLOWOOD PACKING
Delivery Time: 8 WORKING DAYS
Payment Terms: Ex works/FOB/CIF/ CNF
Supply Ability: 50UNITS/MONTH
Detailed Product Description
Model: KLE-AS1950P1 External Size: 1200x1000x2180mm
Internal Size: 800x930x2180mm SUS Nozzle: 12pcs
External Material: Stainless Steel 201 Internal Material: Stainless Steel 304
Power: 380V/50HZ
High Light:

pharmaceutical clean room

,

semiconductor clean room

High Efficiency Stainless Steel Air Shower Clean Room In Pharmaceutical Industry





Quickly detail



Size: 2000x1000x2300mm

Intenal size : 1500x1000x2100mm

Two person with three side blowing

Purification rank: Class100

HEPA filter efficiency: 99.999%@0.3um

Personal per cycle: 2-4 person

SUS nozzle: 22pcs

Blower way : two size

Air speed :>25m/s

Power: 380V/50HZ





Introduction:



Air shower are self-contained chambers installed at entrances to clean room and other controlled environments, they minimize particulate matter entering or exiting the clean space, personnel and materials entering or exiting the controlled environment are filtration by high velocity HEPA-filtered air jets with velocities of 22-30m/s, then contaminated air is drawn through the base within the unit, filtered and re-circulated:



operating features :



1: PCL control system with LED display for the shower time.

2: the air shower duration time adjustable from 0-99second.

3: Infrared ray inductor for inside personal shower automatic from two side

4: Human being voice remind of user progress in chamber.

5: Emergency switch help you out of trouble, Comply with CE Test





Application :Semiconductor plant, microelectronics plant, bio-pharmaceutical plant, etc



Parameter :

    KEL-AS2000P1 Series

Model

KEL-AS2000-P1

External size(mm) (WXDXH)

2000x1000x2300

Work zone (mm)(WXDXH)

1500x1000x2100

Persons per cycle

2-4 person

Air shower Duration

                        Factory set at 12 second (adjustable)

Material

           Steel with white color epoxy power-coated or Stainless steel

Fan consumption

0.75KWX2 sets

Air flow of fan(m3/h)

                                                   1300m3/h

Fan run (r/min)

                                               2800r/min

Nozzle in stain less steel

                                                 24 pcs

Wind speed(m/s)

                                                > 22-27m/s

Noise level(dB)

                                                 <62dB

LED Fluorescent Lamp

                                                   20wx1





HEPA Filter

Size(mm)

                                             630X630X69mm

Efficiency

                                             99.99%@0.3um

Air velocity

                                                   1000(m3/h)

Resistance

                                                      <220pa





Pre-filter

Size(mm)

                                                    785x385x21

Efficiency

                                                    75% @ 5um

Resistance

                                                          <30 Pa

Electrical

Power supply

                                                        380v/50Hz





































































Factory test:



All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Factory test include:

--functional test and visual inspection

--electrical safety tests

--air velocity testing

--purification rank test (if need)





Warranty:



Our equipment is warranty for 1 year excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Consumable parts illustration:



1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.



2: HEPA filter: each one should be replacement in each half and one years.



Why you choose K-LING Company ?



Professional sales:



We value every inquiry that you sent to us, ensure quick competitive offer.

• We cooperate with customer to bid tenders. Provide all necessory docuement.

• We are a sales team, with all techinical support from engineer team



Punctual delivery time:



Production / inspection report provide before shipment

• Shipping notice or insurance for you when your goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide one year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:



T/T in advance, 30% before place the order, 70% when you see copy BL

Or 30% T/T in advance before place the order, 70% LC at sight.
