| Air Speed: | More Than 25m/s | Noise: | Less Than 75dB(1 Meter Distance ) |
|---|---|---|---|
| Door: | Automatic Double Slid Door | Capacity: | 7-50 Persons |
| Power: | 380V/50HZ 3KW | Packing: | Standard Export Polywood Packing |
| Product Name: | Intelligent Air Shower | Other Name: | Pharmaceutical Air Shower |
| High Light: | air shower system,electronics clean room |
||

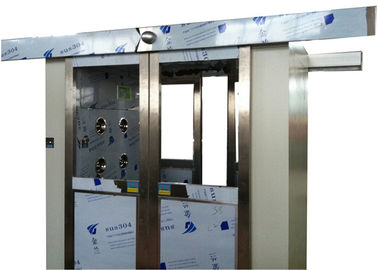

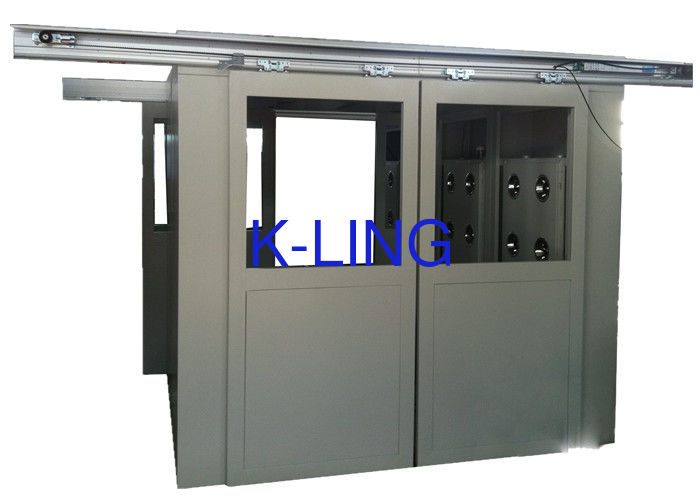

Pharmaceutical Intelligent Air Shower With Emergency Control System
Quicky Detail
External Size: 1150x7000x2180mm
Internal size: 790x6860x1910mm
Alternative type : one row person with two side blowing
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 7-50 person
SUS nozzle: 84pcs
Blower way: two side blower
Air speed :>25m/s
Power: 380V/50HZ or 380V/60HZ
Introduction:
The greatest source of particulate contamination in a clean room is the operator air shower are installed between change areas and the clean room, the air shower tunnel enhances clean room operating protocol by serving as a reminder to all operators that they are entering a controlled environment, personnel should be gowning up properly before entering the air shower tunnel, after you pass the air shower tunnel
Applications: Air shower tunnel can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
|
KEL-AS1150T-7 Air shower Tunnel |
||
|
Model |
KEL-AS1150T-7 |
|
|
External size(mm) (WXDXH) |
1150x7000x2180mm |
|
|
Work zone (mm)(WXDXH) |
790x6860x1910mm |
|
|
Persons per cycle |
1-2 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Material |
1: Entirety Sus304.(T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
|
|
Fan consumption |
0.75KWX7 set |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
84pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx7 |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Resistance |
<220pa |
|
|
Pre-filter |
Size(mm) |
785x385x21 |
|
Efficiency |
75% @ 5um |
|
|
Resistance |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz OR 380v/60Hz |
|
Customer’s design is available. |
||
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
