| Blowing Way: | Two Side Blowing Or Three Side Blowing | Purification Rank: | Rank 100- Rank10000 |
|---|---|---|---|
| Material: | SUS304/306 | Floor: | SUS201 / 304 (t=1.0) |
| Nozzle: | Sus 201(t=1.0mm )16-48 Pcs | Noise: | Less Than 75dB |
| Packing: | Standard Export Ploywood Packing | Product Name: | Food Industry Air Shower |
| Other Name: | Automatic Air Shower | ||
| High Light: | air shower system,biological clean room |
||

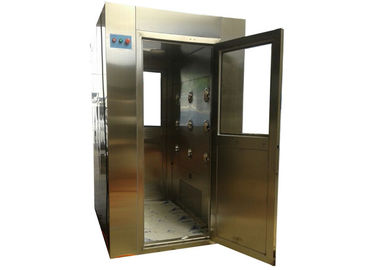

Automatic Air Shower System Positive Pressure Clean Room For Food Industry 380V / 60HZ
Quicky detail
Extenal Size: 1400x3000x2180mm
Internal size: 1000x2860x1910mm
Alternative type :Two row person with three side blowing
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 20-50 person
SUS nozzle: 80-100pcs
Blower way: three side blowing
Air speed :>25m/s
Power: 380V/60HZ/50HZ
Principle :
Operating features :
1 : High-tech smart programmable microprocessor controller
2: The air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: Automatic control operation, two-door electronic interlocking, infrared sensors,
automatic air showering.
Application :
Semiconductor plant, microelectronics plant, bio-pharmaceutical plant
|
KEL-AS1400T-3 Air shower Tunnel |
||
|
Model |
KEL-AS1400T-3 |
|
|
External size(mm) (WXDXH) |
1400x3000x2180mm |
|
|
Work zone (mm)(WXDXH) |
1000x2860x1910mm |
|
|
Persons per cycle |
3-10 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Material |
1: Entirety Sus304.(T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
|
|
Fan consumption |
0.75KWX3 set |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
48 pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx3 |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Resistance |
<220pa |
|
|
Pre-filter |
Size(mm) |
785x385x21 |
|
Efficiency |
75% @ 5um |
|
|
Resistance |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz OR 380v/60Hz |
|
Customer’s design is available. |
||
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
