| Purificatiion Rank: | Class 100- Class100000 | Air Speed: | >24m/s |
|---|---|---|---|
| Sus Nozzle: | 48pcs -56pcs | Material: | Steel With Power Coated /Sus304/Sus201 |
| Door: | Stainless Steel 304 With Half Glass | Light: | Purification Lamp |
| Product Name: | Air Shower Tunnel | Other Name: | Explosion Proof Air Shower |
| High Light: | electronics clean room,biological clean room |
||

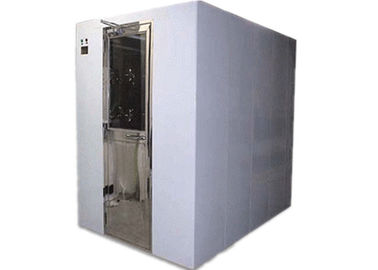

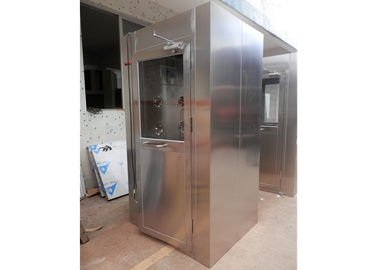

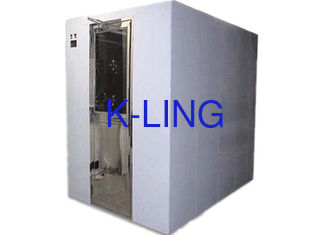

Explosion - Proof Automatic Air Shower Tunnel For Chemical Laboratory
Quicky Detail
EXternal Size: 1590x3000x2300mm
Internal size : 1090x2930x2000mm
one row personal with three side blowing
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 6-50 person
SUS nozzle: 48pcs
Blower way: three size blowing
Air speed :>25m/s
Power: 380V/50HZ
Introduction:
Applications: it can keep pharmaceutical, semiconductor, micro-electronics production and lab animal breeding areas clean and also minimize egress of hazardous substances and allergens from the controlled environment.
operating features :
1 : Microelectrics control system with LED display for the shower time.
2 : the air shower duration time adjustable from 0-99second.
3 : Infrared ray inductor for inside personal shower automatic from three side
4 : Human being voice remind of user progress in chamber.
5 : Emergency switch help you out of trouble, Comply with CE Test
6 : Explsion- proof fan use for espcieal purpose .
|
KEL-AS1590T-3 Air Shower Tunnel |
|||
|
MODEL |
KEL-AS1590T-3 |
||
|
External size (mm) (WXDXH) |
1590x3000x2300mm
|
||
|
Work zone (mm) (WXDXH) |
1090x2880x2000mm |
||
|
Persons per cycle |
6-50 person |
||
|
Air shower Duration |
Factory set at 12 second (adjustable) |
||
|
Air shower direction |
Three side with blowing |
||
|
Material (Option) |
1: Entirety Sus304. 2: Entirety sus201. 3: External is steel with power coated, Internal is SUS304. 4: External is steel with power coated. Internal is SUS201. |
||
|
Control system |
1: PCL control system with LED display for the shower time. 2: The shower time from 0-99second. (Adjustable). 3: Infrared ray inductor for inside personal shower automatic. 4: Human voice prompt system. 5: with CE remark. |
||
|
The power of Fan |
380V/50HZ/750W(3 set) |
||
|
Air flow of fan(m3/h) |
1300m3/h |
||
|
Fan run (r/min) |
2800r/min |
||
|
Nozzle in stain less steel |
48 pcs |
||
|
Wind speed(m/s) |
23-29m/s |
||
|
Noise level(dB) |
<62dB |
||
|
LED Fluorescent Lamp |
20wx3 |
||
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
|
Efficiency |
99.99%@0.3um |
||
|
Air velocity |
1000(m3/h) |
||
|
Initial resistance(pa) |
<220pa |
||
|
Pre-filter |
Size(mm) |
775x380x17 |
|
|
Efficiency |
75% @ 0.5um |
||
|
Resistance(pa) |
<30 Pa |
||
|
Electrical |
Power supply |
380v/50Hz |
|
|
Net power(kw) |
0.75X3 kw |
||
Customer’s design is available.
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
