Product Details:
Payment & Shipping Terms:
|
| Inside Material: | Inside Is SUS304 | Outside Material: | Outside Is Steel With Power Coated |
|---|---|---|---|
| Control System: | PLC Control System | Blowing Way: | 2 Side Or 3 Side |
| Type: | U Type Or L Type | Power Supply: | 415V/50HZ Or 380V/50HZ |
| Product Name: | Class 10000 Air Shower Tunnel | ||
| High Light: | electronics clean room,biological clean room |
||

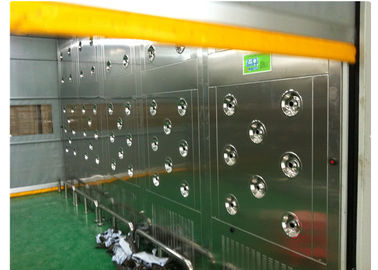

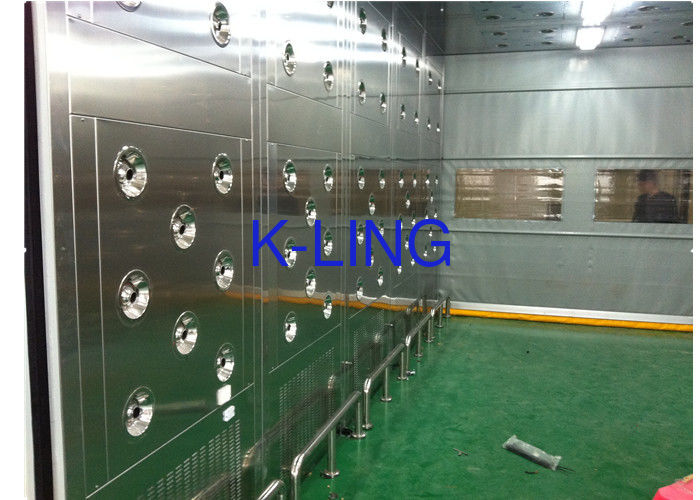

Custom Class 10000 Clean Room Air Shower Passing Tunnel With Automatic Door
Quicky Detail
Size: 1300x5000x2180mm
Internal side : 800x4860x1910mm
Alternative type : One row man with three side blowing
Purification rank: Class100
HEPA filter efficiency: 99.999%@0.3um
Personal per cycle: 5-50 person
SUS nozzle: 80pcs
Blower way: three size blower
Air speed :>25m/s
Power: 380V/50HZ or 380V/60HZ
Introduction:
Operating Features :
1 : Microelectrronics control system with LED display for the shower time.
2: the air shower duration time adjustable from 0-99second.
3: Infrared ray inductor for inside personal shower automatic from three side
4: Human being voice remind of user progress in chamber.
5: Emergency switch help you out of trouble, Comply with CE Test
6: Two doors equipped with imported door closers, automatically close.
|
KEL-AS1300T-5 Air shower Tunnel |
||
|
Model |
KEL-AS1300T-5 |
|
|
External size(mm) (WXDXH) |
1300x5000x2180 |
|
|
Work zone (mm)(WXDXH) |
800x4860x1910 |
|
|
Persons per cycle |
5-50 person |
|
|
Air shower Duration |
Factory set at 12 second (adjustable) |
|
|
Material |
1: Entirety Sus304.(T=1.0/1.2mm) 2:External is steel with power coated, Internal is SUS304.(T=1.0/1.2mm) 3: External is steel with power coated. Internal is SUS201. (T=1.0/1.2mm) |
|
|
Fan consumption |
0.75KWX5 set |
|
|
Air flow of fan(m3/h) |
1300m3/h |
|
|
Fan run (r/min) |
2800r/min |
|
|
Nozzle in stain less steel |
80 pcs |
|
|
Wind speed(m/s) |
> 22-27m/s |
|
|
Noise level(dB) |
<62dB |
|
|
LED Fluorescent Lamp |
20wx5PCS |
|
|
HEPA Filter |
Size(mm) |
630X630X69mm |
|
Efficiency |
99.99%@0.3um |
|
|
Air velocity |
1000(m3/h) |
|
|
Resistance |
<220pa |
|
|
Pre-filter |
Size(mm) |
785x385x21 |
|
Efficiency |
75% @ 5um |
|
|
Resistance |
<30 Pa |
|
|
Electrical |
Power supply |
380v/50Hz OR 380v/60Hz |
|
Customer’s design is available. |
||
Factory test:
All of equipment is individually factory tested for safety and performance
in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)
Warranty:
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
Why you choose K-LING Company ?
Professional sales:
• We value every inquiry that you sent to us, ensure quick competitive offer.
• We cooperate with customer to bid tenders. Provide all necessory docuement.
• We are a sales team, with all techinical support from engineer team
Punctual delivery time:
• Production / inspection report provide before shipment
• Shipping notice or insurance for you when your goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide one year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
T/T in advance, 30% before place the order, 70% when you see copy BL
Or 30% T/T in advance before place the order, 70% LC at sight.
