| Type: | Ultral Air Filter | Efficiency: | U15 |
|---|---|---|---|
| Media: | HV Glass Fiber | Screen: | Both Side With Metal Screen |
| Gasket: | Circle Rubber | Cap: | Galvanize |
| High Light: | Glass Fibe ULPA Air Filter,Clean Room ULPA Air Filter,U15 ULPA Air Filter |
||

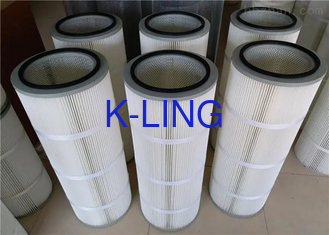

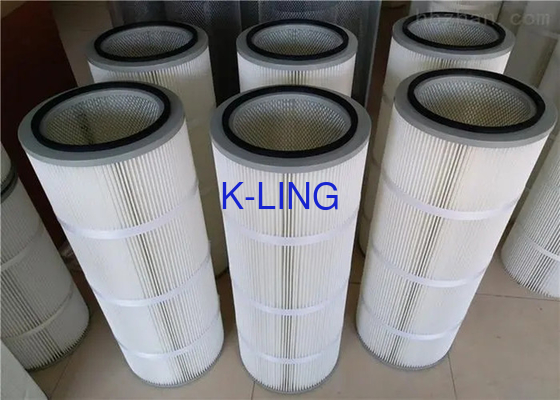

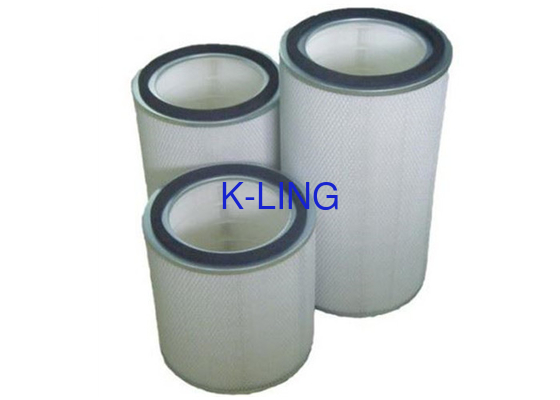

U15 Glass Fiber Air Filter ULPA Air Filter Media , Low Resistance Clean Room Air Filter
Quicky Detail:
Media: HV glass fiber
Screen : both side with metal screen
Gasket: Circle Rubber
ULPA filter efficiency: 99.99995%@0.12um U15
ULPA filter size: Ex: 175mm IN:105mm H:230mm
Resistance:<200pa
Cap : Galvanize
Characteristics:
1: The ULPA air filter is the finally filtration in class10 clean room that use for filter the particles more than 0.12um.
2: The filter media adopt the HV glass fiber , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .
3: The anodized aluminum frame so that it is anticorrosion in long time.
4: The sealant around the media so that the air filter without any air leaking
5: the both side of air filter is metal screen with power coated so that the media without any damage.
6: laser to scan the each air filter one by one,
Parameter
| Dimension (W*H*D)(Mm) | Air Velocity (M3/H) | Filtration Area (M2) | Holding Dust (G) | Primary Resistance
| Final Resistance | Efficiency (0.12um) |
| 320x320x50 | 170 | 1.9 | 160 | <160±10pa | 400-600pa |
U15-U17
|
| 484x484x50 | 300 | 4.6 | 360 | <160±10pa | 400-600pa | |
| 610x610x50 | 450 | 7.5 | 570 | <160±10pa | 400-600pa | |
| 915x610x50 | 650 | 11.2 | 850 | <160±10pa | 400-600pa | |
| 1220x610x50 | 850 | 14.9 | 1130 | <160±10pa | 400-600pa | |
| 320x320x69 | 200 | 2.89 | 230 | <160±10pa | 400-600pa | |
| 484x484x69 | 400 | 6.6 | 530 | <160±10pa | 400-600pa | |
| 610x610x69 | 600 | 10.7 | 830 | <160±10pa | 400-600pa | |
| 915x610x69 | 900 | 16 | 1230 | <160±10pa | 400-600pa | |
| 1220x610x69 | 1200 | 21.3 | 1640 | <160±10pa | 400-600pa |
Customized design is available.
