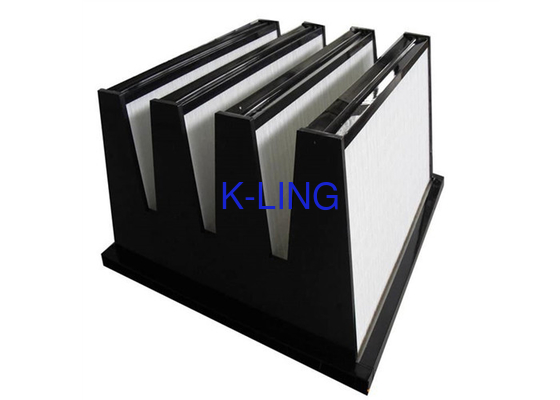

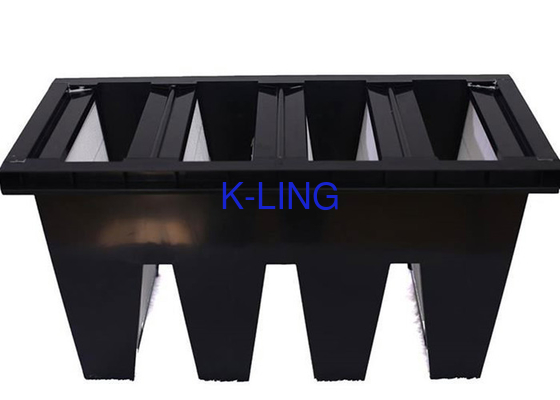

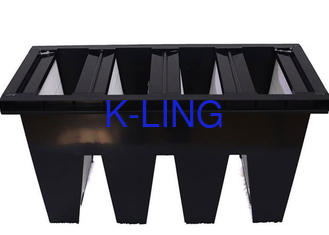

Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9

Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9
Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9 Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9

Large Image :  Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-AF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 set/ month
Contact Now
Detailed Product Description
Frame: Plastic Frame Size: Customized
Application: Air Filtration System Type: V Bank Filter
Air Volume: Big Air Volume Original: China
High Light:

V/W Type F6 Air Purifier

,

Plastic Frame V Bank Filter

,

Air Filtration System V Bank Filter

Plastic Frame V Bank Filter V/W Type Air Purifier Medium Efficiency:F6,F7,F8,F9





Detail



Application: Air intake for gas turbines, compressors and large engines.
Type: High efficiency, incinerable compact filter.
Frame: Polypropylene and ABS.
Gasket: Expanded polyurethane placed on the downstream side (code 01).
Media: Glass fibre paper.
Separator: Hot-melt beads.
Sealant: Polyurethane.
Grid: Glass fibre reinforcement grid placed downstream.
EN 779:2002 efficiency: F7. F8 F9.
EN 1822 efficiency: H10.
Recommended final pressure drop: 600 Pa.
Temperature: 80°C maximum in continuous service.
N.B: Burst pressure: > 7500 Pa.
Optional: Alternative frame materials and size available on request.





Parameter



Nominal size
Actual size
Partition
Flange
Rated air volume
(inch)
(mm)
(V)
(non/single)
(m3/h)
W×H×D
W×H×D



12×24×12
287×592×292
2V
Single flange
1200
24×12×12
592×287×292
4V
Single flange
1200
24×20×12
592×492×292
4V
Single flange
2200
24×24×12
592×592×292
4V
Single flange
2700
12×24×12
305×610×292
2V
Non-flange
1400
24×24×12
610×610×292
4V
Non-flange
3000
Nominal size
Surface air speed
Rated initial resistance
Recommended final resistance
(inch)
(m/s)
(Pa)
(Pa)
W×H×D

F6
F7
F8
F9
Double initial resistance
12×24×12
2.50
110
120
130
140
Double initial resistance
24×12×12
2.50
110
120
130
140
Double initial resistance
24×20×12
2.50
110
120
130
140
Double initial resistance
24×24×12
2.50
110
120
130
140
Double initial resistance
12×24×12
2.50
110
120
130
140
Double initial resistance
24×24×12
2.50
110
120
130
140
Double initial resistance



Plastic Frame V Bank Filter V/W Type Air Purifier F6 F7 F8 F9 0
