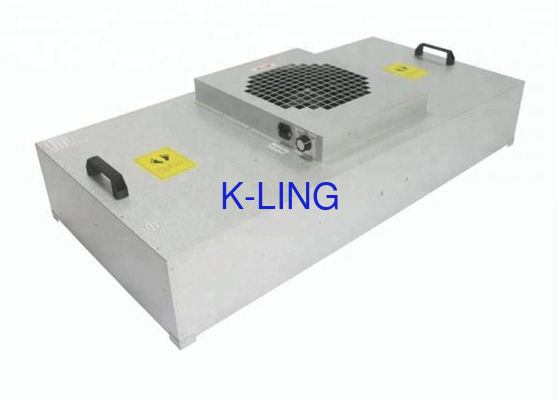

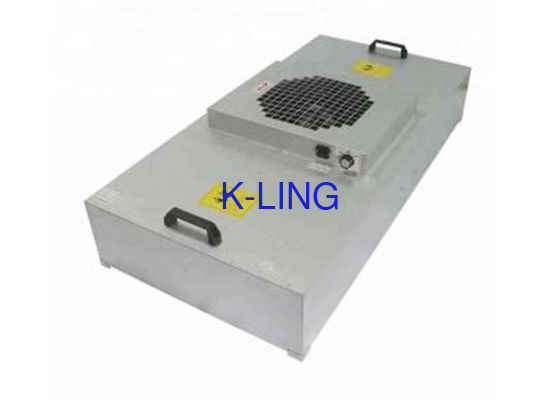

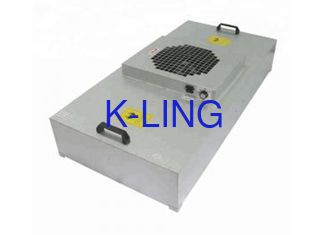

100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room

100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room
100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room 100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room

Large Image :  100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-FFU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Filter Fan Unit/ FFU Application: Clean Room
HEPA Filter: 99.99%@0.3um Control: System Control
Material: Stailess Steel SUS304/201/316 /galvanized Sheet Warranty: 1 Year
High Light:

100w Galvalume FFU Fan Filter

,

ISO5 Clean Room FFU Fan Filter

,

System Control SS Hepa Filtration Units

100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room



Description:


A cleanroom fan filter unit (FFU) is a type of motorized air filtering equipment. It is used to supply purified air to cleanrooms, laboratories, medical facilities or microenvironments by removing harmful airborne particles from recirculating air. The units are installed within the system's ceiling or floor grid. Large cleanrooms require a proportionally large number of FFUs, which in some cases may range from several hundred to several thousand. Units often contain their own pre-filter, HEPA filter and internally controllable fan air distribution.





Features



1. Overheating protection: Inside equipped with overheating protection, the surface is smooth and bright, lower air resistance and good sound insulation. Special air entrance design can low down the noise effectively .

2. The average air speed increase to 25%: Long-life span, energy-saving, low noise, less maintenance, small vibration and adjustable speed. The average air speed increase to 25%.

3. Life-long span: It works as an average air speed of 0.45m/s. The outlet speed is stable and can shorten the period the replace filters. In the meantime, it can extend the service life of fans.

4. Space-saving:Light and convenient, easy and beautiful design. Let the using space reduced largely and the efficiency is higher. Not only improve the scope and space, but also energy saving.




Item KEL-FFUT-1 KEL-FFUT-2 KEL-FFUT-3 KEL-FFUT-4
Size (WxLxH) 575x875x275mm 920x615x275mm 575x1175x275mm 615x1225x275mm
Air Chamber Material Steel / Aluminum / Stainless Steel
Air Flow 800~900m³/h 800~900m³/h 1100~1200m³/h 1100~1200m³/h
Air Velocity 0.35~0.55m/s
Total Pressure 230Pa 230Pa 230Pa 230Pa
Power 100W 100W 100W 100W
Weight 25kgs 27.5kgs 34kgs 37.5kgs
Noise
(1m below the HEPA filter)
55~63dB
Vibration 0.2~0.7mm/s
Power Supply 110V/50Hz, 220V/ 50Hz, 330V/50Hz
Control Mode 3 Levels Adjustable Manually Or Group Control Dy Computer
Options

DOP Inject Port / DOP Sample Port / Differential Pressure Drop Test Port /

Differential Pressure Drop Alarm Device

HEPA Filter Size (WxHxD) 570x870x69mm 915x610x69mm 570x1170x69mm 610x1220x69mm
Efficiency 99.99% 0.3μm
Frame High Quality Anodized Aluminum
Initial Pressure Drop 110Pa@0.45m/s±15%
Trait PU Foam Endless Gasket



Display

100w Galvalume FFU Fan Filter / Hepa Filtration Units For ISO5 Clean Room 0
