Product Details:
Payment & Shipping Terms:
|
| Name: | Laminar Flow Cabinets | Material: | Steel With Powder Coated/ SUS 304/ SUS316/ SUS201 |
|---|---|---|---|
| Size: | Customized | Application: | Laboratory |
| Power: | 450W | Noise: | 65 DB |
| High Light: | Laboratory Laminar Flow Cabinets,65dB Noise Laminar Flow Cabinets,Low Noise Clean Room Work Bench |
||

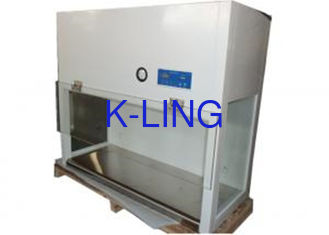

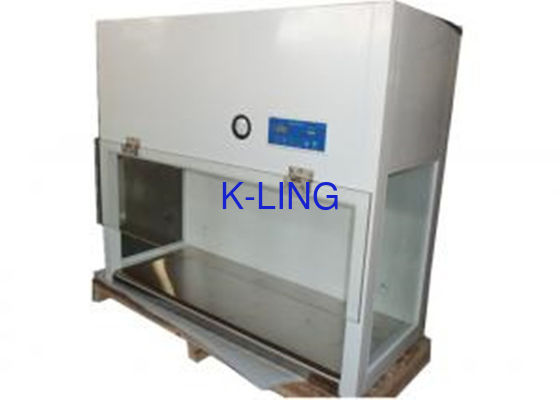

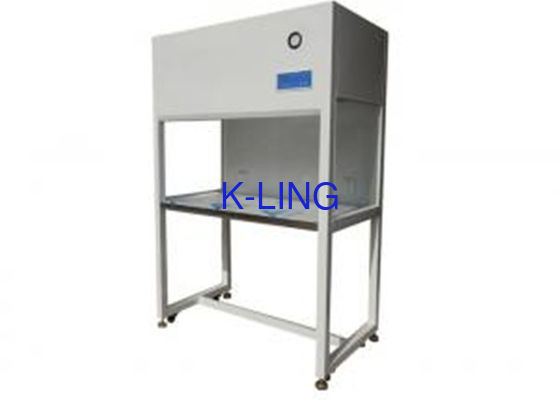

Low Noise Clean Room Work Bench Customized Size Laminar Flow Cabinets For Laboratory
Quicky Detail:
External size: 1000x700x1800mm
Internal Size: 900x600x650mm
Purification rank: Class100
HEPA filter efficiency:99.99%- 99.999%@0.3um
Front of the clean bench with a glass
Air speed :0.3-0.6m/s
Introduction:
Vertical laminar flow cabinet are high-performance exhaust filter table at all times maintain the cleanliness of the control region, the entire cycle of airflow design, around the table with the lower spring-loaded door, can be flexible positioning. Efficient isolation air curtain to prevent cross-infection. Cleanliness level ISO5 up (CLASS100 level), colonies with low, long table to ensure the cleanliness, speed adjustable to meet your different needs of the
wind speed, high-displacement, low noise, high-intensity, low vibration, low power consumption, so that you as
the lowest production costs, the highest demand for the cleaner.
Applications:
clean rooms, electronics assembly, semiconductors, pharmaceutical .aerospace and medical devices industries, mycology and food microbiology, plant and mammalian Cell culture, applications benefiting from the isolated work surface frames design which virtually eliminates vibration.
Laminar Flow Cabinets Drawing
Technical Parameter
| MODEL | KEL -VCB-2 | ||
|
External size (mm) (WXDXH) |
1200x700x1800mm | ||
|
Work zone (mm) (WXDXH) |
1100x650x600mm | ||
| Purification rank | FS209E 100Rank | ||
| Rating airflow(m3/h) | 1800m3/h | ||
| Filtration efficiency | More than 99.99%@0.3um H13-H14 | ||
| Average wind speed | 0.3-0.6m/s | ||
| Intensity of illumination | >300lx | ||
| pressure gauge | America Dwyer pressure watch 1 pcs | ||
| UV Light | 1 pcs | ||
| Fluorescent lamp | 30Wx1 | ||
|
Material (Option) |
1:Entirety Sus201/304. 2: External is steel with power coated, Internal is SUS304 4: External is steel with power coated. Internal is SUS301 |
||
| Power | 450w | ||
| Noise | <65dB | ||
| Power supply | 110v/ 60HZ 220V-240V AC 50HZ | ||
Customer’s design is available.
About us
KeLing Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.
Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.
Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.
