Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

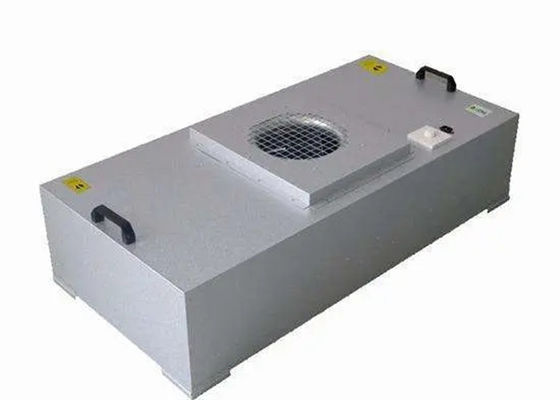

Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter

Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter
Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter

Large Image :  Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-FFU
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Filter Fan Unit/ FFU Application: Clean Room
HEPA Filter: 99.99%@0.3um Control: System Control
Material: Stailess Steel SUS304/201/316 /galvanized Sheet Warranty: 1 Year
High Light:

FFU Blower Filter Unit

,

Hepa Fan Filter Unit

,

Clean Room FFU Fan Filter Unit

Modular Fan Filter Unit/ FFU With High Efficiency HEPA/ ULPA Filter For Medical Company


FFU Series modules consist of a fan/ motor assembly and high efficiency HEPA/ ULPA filter. The modules are designed to provide filtered, unidirectional vertical air flow over a clean room space. Fan filter units are recommended for use in all types of clean room environments semiconductor and microelectronics manufacturing facilities, as well as pharmaceutical and medical labs. The product is designed for use in Class 10 through Class 100, 000 clean room spaces.


Application:
Be widely used in pharmaceutical and semiconductor manufacturing facilities, medical facilities and other clean process applications.


Description:
Fan(high efficiency centrifugal fan)
Long life time, low noise, maintenance free, small vibration, stepless speed regulation;
Stable speed regulation, the air flow remain unchanged when the HEPA filter is run in final resistance;
Energy-saving, controlled by computer, stable performance; 800 PCS FFU can be controlled by one computer.
HEPA filter
Efficiency: 99.995% @0.3um
Material of FFU body:
Al-zn coated sheet;
Brightness stainless steel
Cold rolled sheet, powder coating
Aluminum alloy
Speed regulation:
Options: Varying-voltage control speed regulation for single FFU;
Frequency conversion speed regulation for multiple FFU
We can manufacture non-standard FFU according to customers' requirements.


Parameter

Fan Filter Unit
ModelKEL – FFU920KEL – FFU1175KEL – FFU1225
External size:
(W*D*H)mm
920X615X3501175X575X3501225X615X350
Air Flow900m3/h1000m3/h1200m3/h
ConstructionStainless steel 304/aluminum/galvanized steel/steel with power coated
Air Velocity0.3 / 0.35 / 0.4 / 0.45 / 0.5 / 0.6 m/s
Control system
  1. Power on/off 2. Control speed
Pressure (pa)97 (10mm)Aq
Hepa
Filter
Size(mm)915X610X691170X570X691220X610X69
Efficiency99.99% @0.3um
Pressure180pa @0.45m/s
Power supply220/110V 50/60HZ
Fan power123W123W175W
Noise52dB52dB52dB




Display

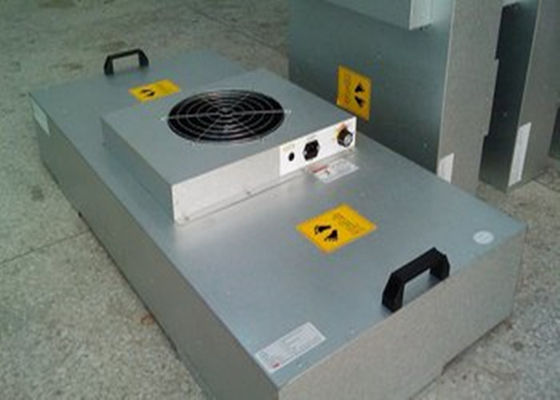

Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter 0
Medical Company Modular Fan Filter Unit FFU With High Efficiency HEPA / ULPA Filter 1
