Product Details:
Payment & Shipping Terms:
|
Application: | Remove VOCs And CO2 | Type: | Activate Carbon Filter |
---|---|---|---|
Structure: | Pleated Panel Filter | Certification: | ISO |
Original: | China | Warranty: | 1 Year |
High Light: | 1" Thickness V Bank Filter,CO2 Removal V Bank Filter,4" Thickness Carbon Hepa Filter |

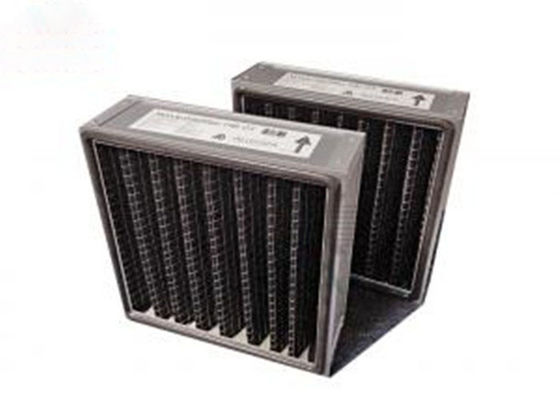

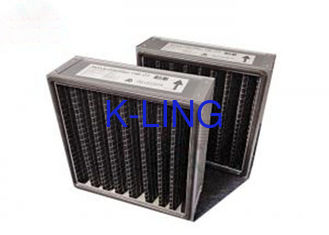

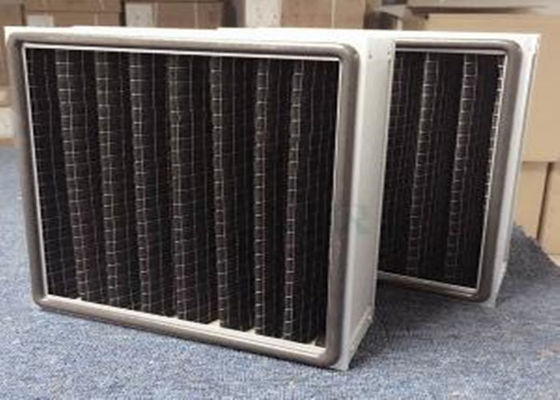

Pleated Panel Activated Carbon Filter Available In Thickness 1" 2" 4" Customized Size
Description:
The KEL Activated Carbon filter are designed to have a low pressure drop and are normally interchangeable with particulate filter, used for filtration of airborne particles, odors, smoke, noxious gas in civil and industrial air conditioning systems. It is commonly also used as pre-filtration stage for fine dust filters.
Filters using either pads or pleats, contain either granular or power coated carbon. Carbon is either intergrated with fibers during manufacturing or impregnated via a slurrv process into an existing non-woven products.
Detail
Media: Activated carbon fiber or Activated carbon felt
Frame: Aluminium or Galvanized steel
Average arrestance: 92%
Gasket: EVA foam.
Recommended final pressure drop:200 Pa
Humidity resistance: 60%
Max Temperature: 80 ℃
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Media color available: black
Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
Galvanized mesh protection in air down steam side.
Parameter
Nominal Size WxHxD.inch |
Actual Size WxHxD.mm |
Rated Airflow(m3/hr) |
Initial Pressure Drop (Pa) |
Removal Efficiency (%) |
24x24x1 | 595x595x21 | 1600 |
40 |
Depending on field condition |
20x24x1 | 495x595x21 | 1350 | ||
12x24x1 | 295x595x21 | 800 | ||
24x24x2 | 595x595x46 | 3200 | ||
20x24x2 | 495x595x46 | 2700 | ||
12x24x2 | 295x595x46 | 1600 |
Other sizes is available!
