Product Details:
Payment & Shipping Terms:
|
| Filter: | Mini Pleat Hepa Filter | Material: | Powder Coating Steel |
|---|---|---|---|
| Efficiency: | 99.99%@0.3um | Feature: | Replacement Hepa Filter |
| Warranty: | 1 Year | Original: | China |
| High Light: | Customize Clean Room Hepa Filter Box,Activated Carbon Treatment Hepa Filter Box |
||

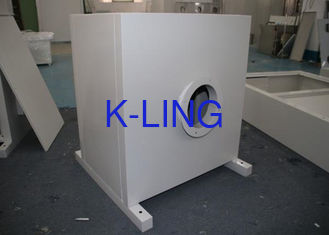

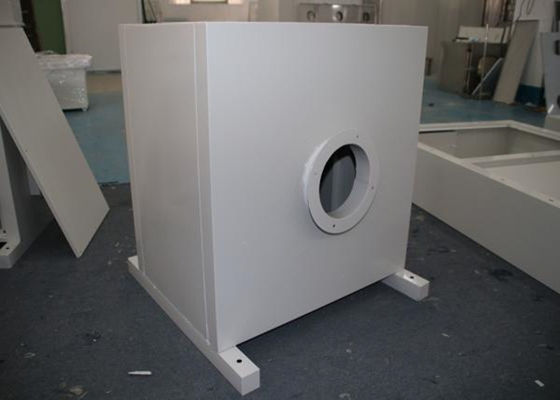

Customize Clean Room Hepa Filter Box Diffuser Round Duct Interface For Special Vents
Description
HEPA diffuser, HEPA filter diffuser box, HEPA filter box
HEPA diffuser is an ideal air fitlering terminal for the clean room or clean workshop.
It consists of plenum box,hepa filter, short air inlet tube and outlet air diffuser board etc.
These series are terminal filter equipments of purification workshop, the shell is made of premium cooled steel plate, static on the surface by spraying; HEPA filter airflow outlet maintain the qulity, the flow and the direction of the air and prevent eddy current from happening; great appearance; less investment; simple structure.
It has an attractive structure, good sealing property and is convenient for both mounting and air volume.The plenum box has both the heat and sound insulating material,which not only purifies the environment, but also has noise elimnination effect.
Applications
Used for the relatively high level of class 100,1000 air purification system of the terminal filter air feeding device.
Structure
1). The box is made of high-quality cold-rolled steel plates, and the outer surface is electrostatically sprayed and dispensed with diffuser plates.
2). Compact structure, reliable sealing performance, side air inlet and top inlet air in the air inlet, and square and round flange structure.
3). When the clean room is limited by the civil construction height or when a compact design must be adopted, an integrated high-efficiency filter air outlet may be used.
4). There is insulation layer, stainless steel material to choose from.
Parameter
| Filter size | Box size (top blow) | Box size (side blow) | Rated air flow | Size of round interface | Size of square interface | Filter resistance | |
| L*W*H(mm) | L*W*H(mm) | L*W*H(mm) | m³/h | mm | mm | H13 (Pa) | H14 (Pa) |
| 340*340*70 | 410*410*280 | 410*410*450 | 500 | 250 | 200*200 | 280 | 300 |
| 340*340*90 | 410*410*300 | 410*410*450 | 250 | 270 | |||
| 484*484*70 | 554*554*280 | 554*554*450 | 1000 | 300 | 300*200 | 280 | 300 |
| 484*484*90 | 554*554*300 | 554*554*450 | 250 | 270 | |||
| 610*610*70 | 680*680*280 | 680*680*450 | 1500 | 350 | 400*200 | 280 | 300 |
| 610*610*90 | 680*680*300 | 680*680*450 | 250 | 270 | |||
| 870*570*70 | 940*640*280 | 940*640*450 | 2000 | 350 | 500*200 | 249 | 280 |
| 870*570*90 | 940*640*300 | 940*640*450 | 220 | 250 | |||
| 1170*570*70 | 1240*640*280 | 1240*640*450 | 2500 | ø300*2units ø450*1unit | 630*200 | 249 | 280 |
| 1170*570*90 | 1240*640*300 | 1240*640*450 | 220 | 250 | |||
| 1260*610*70 | 1290*640*280 | 1290*680*450 | 3000 | ø300*2units ø450*1unit | 630*250 | 249 | 280 |
| 1260*610*90 | 1290*640*300 | 1290*680*450 | 220 | 250 | |||
| Note:SIDE BLOW ONLY MATCH SQUARE INTERFACE | |||||||
| Filter resistance common difference is ±10% | |||||||
