| Lock: | Electronical And Machine Lock | Material: | SUS 304/ Powder Coated Steel |
|---|---|---|---|
| Name: | Air Shower Pass Box | Application: | Clean Room Item Transfer |
| Warranty: | 1 Year | Original: | China |
| High Light: | Air Shower Nuzzles Stainless Steel Pass Box,Hepa Filter Stainless Steel Pass Box,Powder Coated Steel Cleanroom Pass Through Box |
||

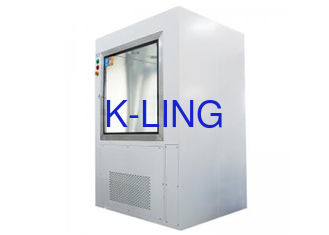

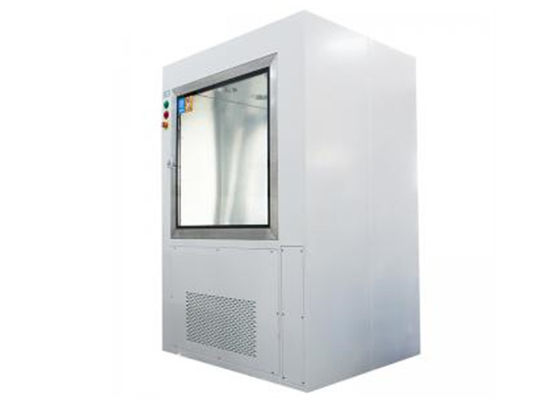

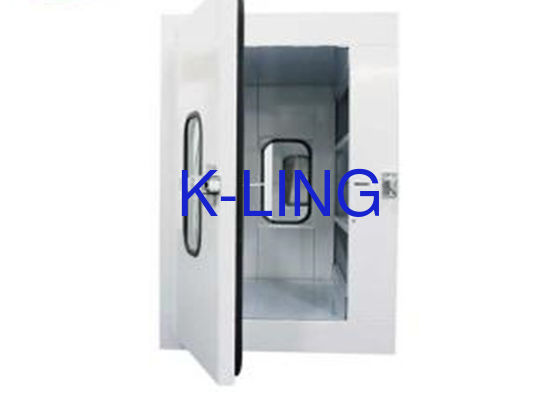

Pre-Fliter and Hepa Filter Cleanroom Pass Box High Efficiency With Air Shower Nuzzles
Description:
Air-shower transmission window is designed according to the model of the air shower;the air blown out quickly by the fan will become clean air passing through the high efficiency filter;the clean air is sprayed out of the stainless steel spray header with the speed over 25m/s,which can be used to remove the dust particles adhesive to the surface of the object effectively and repidly.After the double filtration by circulation air and primary efficiency filter,the effect of purification is notable with strong usability.
Main Features:
· Built-in air shower significantly reduces surface contamination on materials entering or exiting the controlled environment. Materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA/ULPA filtered air jets with velocities of 25 m/s (4921 fpm). Contaminated air is then drawn through the base within the unit, filtered and recirculated.
· An array of stainless steel nozzles direct high-velocity jets within the chamber.
Parameter
| Outline dimension W×D×Hmm | 940×600×1450 | 1090×750×1500 | 1140×800×1550 |
| Internal dimension W×D×Hmm | 600×600×600 | 750×750×750 | 800×800×800 |
| Pre filter size mm | 570×290×17(1pcs) | 745×290×17(1pcs) | 795×290×17(1pcs) |
| Hepa size mm | 610×610×120(1pcs) | 610×610×120(1pcs) | 610×610×120(1pcs) |
| Fan power and power | 380V/50Hz/750(1pcs | 380V/50Hz/750(1pcs | 380V/50Hz/750(1pcs |
| Fan delivery m3/h | 1200 | 1200 | 1200 |
| Fan speed r/min | 2800 | 2800 | 2800 |
| The number of nozzle | 4pcs | ≥4pcs | ≥4pcs |
| Filter efficiency | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um |
