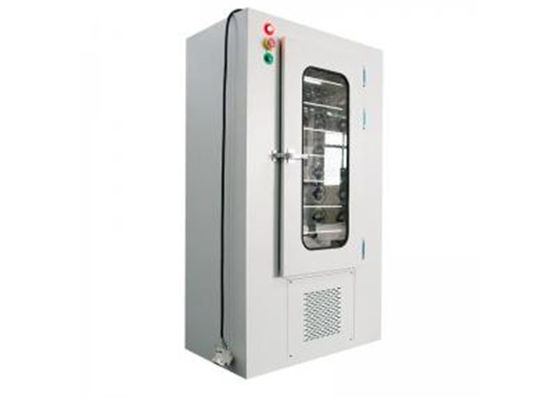

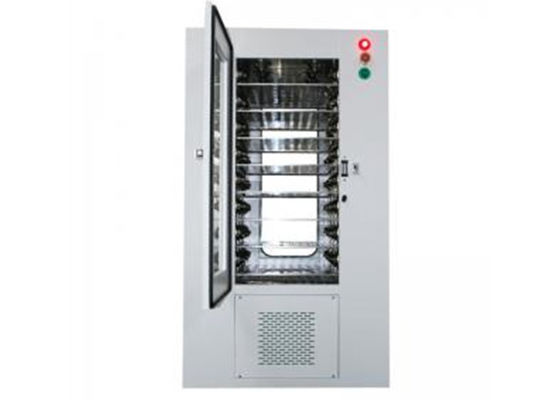

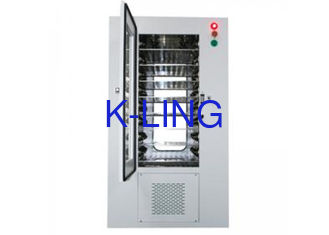

Multi-layer Clean Room Air Shower Pass Box Hepa / Pre Filter System Durable
Product Overview
Lightweight cold-roll steel
Easy-to-clean SUS304 Inner Liner
Direct-acting Fan Motor
Mini Pleat HEPA Filter
Low Noise less than 60dB
Multiple stainless steel nozzles (custom)
UV Sterilization
Interlocking System
Easy-to-install by Wall Mounted or Floor Mounted
Construction:
1. Robust construction qualifies the air shower pass box for the most demanding controlled environment applications. The unit is fully assembled and ready to install and operate when shipped. All components are designed for maximum chemical resistance and enhanced durability for a long service life.
2. Electrical interlock maintains cleanroom integrity by preventing both doors from being opened at the same time.
3. The air shower is constructed of SUS304 with an abrasion resistant oven-baked powder coated finish.
4. The pass box base surface is constructed of perforated stainless steel, making the work zone easy to clean.
5.Acrylic doors provide a clear view of the internal chamber.
Parameter
| Outline dimension W×D×Hmm | 940×600×1450 | 1090×750×1500 | 1140×800×1550 |
| Internal dimension W×D×Hmm | 600×600×600 | 750×750×750 | 800×800×800 |
| Pre filter size mm | 570×290×17(1pcs) | 745×290×17(1pcs) | 795×290×17(1pcs) |
| Hepa size mm | 610×610×120(1pcs) | 610×610×120(1pcs) | 610×610×120(1pcs) |
| Fan power and power | 380V/50Hz/750(1pcs | 380V/50Hz/750(1pcs | 380V/50Hz/750(1pcs |
| Fan delivery m3/h | 1200 | 1200 | 1200 |
| Fan speed r/min | 2800 | 2800 | 2800 |
| The number of nozzle | 4pcs | ≥4pcs | ≥4pcs |
| Filter efficiency | 99.99%@0.3um | 99.99%@0.3um | 99.99%@0.3um |
