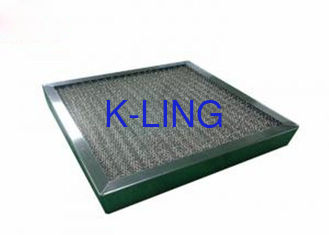

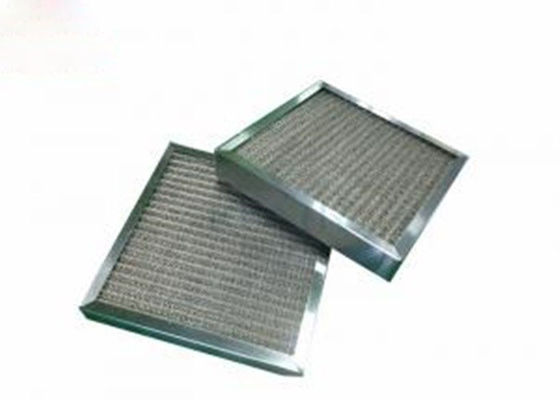

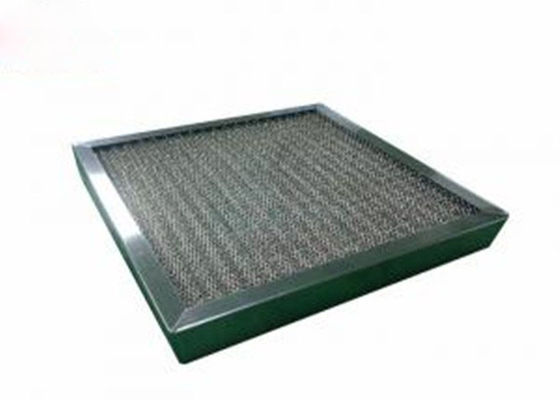

Washable High Temperature Pre Air Filter Corrosion Resistant With SUS Frame

Washable High Temperature Pre Air Filter Corrosion Resistant With SUS Frame

Applications:

Washable Permanent Filter is designed for use in the majority of commercial applications such as air handling units, industiral machinery as well as Grease hoods.Provide deeper dirt and grease penetration, the seven layers of Aluninum mesh create perfect Air/Grease filter.

SPECIAL SIZES-We can custom make all sizes. It is important to specify exact dimensions on special sizes. These filters are made exactly as ordered. Thickness also available in 1" 2" and 4".

HANDLES-Handles are available upon request at an additional cost. Please specify exact location required.

Parameters:

Media: Corrugated SS mesh
Frame: Water-resistance cardboard; GI; AI
Efficiency range from G2,G3, G4 (EN 779) MERV 6-12 ASHRAE 52.2 1999
Average Arrestance: 80% @5μm; 95%@ 5μm;
Initial resistance: 45 Pa
Recommended final pressure drop : 250Pa
Humidity resistance: 90%RH
Max Temperature: 80 ℃
DIN 53438 Flammability: F1
UL 900 Standard : Class 2
Max.air flow rate: 125% of rated air flow
Media color available: Blue; White; Green
Filter standard depth available 2 inch(46mm) and 4 inch(96mm)
Galvanized supporting grid to ensure strength construction in diamond or square shape.

Specifications:
