| Name: | Laminar Flow Ceiling | Application: | Hospital |
|---|---|---|---|
| Material: | Powder Coated Steel | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | powder coated steel Laminar Flow Ceiling,hospital Cleanroom Laminar Flow Ceiling,CE standard Laminar Flow Ceiling |
||

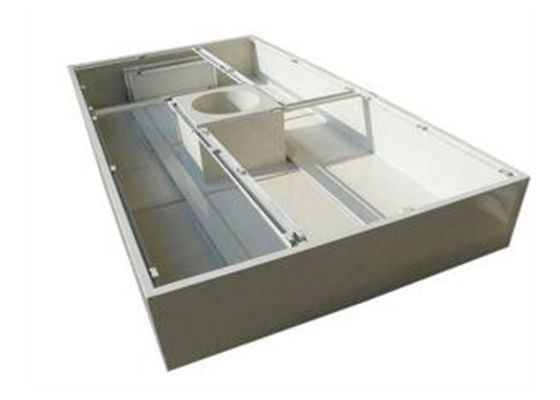

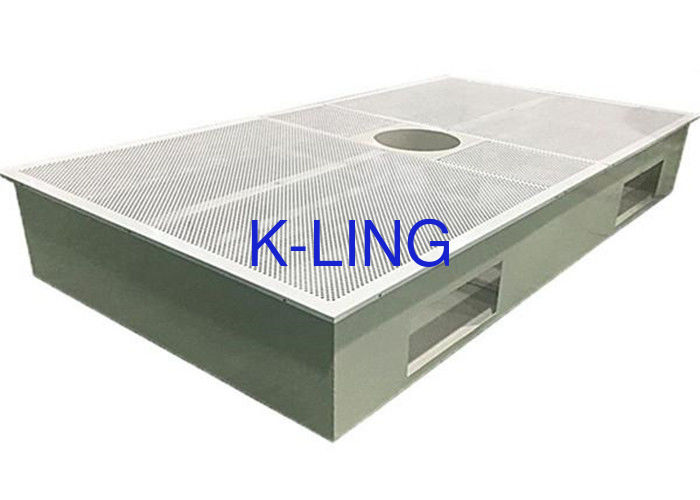

Laminar Air Flow Supply Ceiling/ Laminar Flow Ceiling For Hospital Operation Cleanroom
Description
In accordance with the purification class, laminar flow air supply ceiling is divided into Class 5/6/7/ 8 /9 (ISO14644-1) laminar flow air supply ceiling,or classified to burn ward, blood ward and ophthalmic operating room laminar flow air supply ceiling, etc.
Advantages
a. Plastic-sprayed electrolytic plate and stainless steel materials can be selected by customers.
b. The T type special aluminum configured with spring clip-on installation makes the maintenance and installation convenient and time-saving.
c: The DPP equalizer net makes the air more uniform and gentle. The medium speed airflow compensation device is optional.
d. The high efficiency air filter can be decorated to two kinds of air supply,side air supply and roof air supply. The non-standard dimension of laminar flow air supply ceiling can be made in case of special actual environment.
Parameter
| Model/parameter | Class Ⅰ | Class Ⅱ | Class Ⅲ |
| Efficiency | 99.99% | ||
| The wind speed(m/s) | 0.45 | 0.3 | 0.23 |
| Air supply size (mm) | 2600×2400 | 2600×1800 | 2600×1400 |
| Boundary dimension (mm) | 2680×2480×500 | 2680×1880×500 | 2680×1480×500 |
| Hepa size and QTY | 610*305*292mm 8pcs | 610*305*292mm 6pcs | 610*305*292mm 4pcs |
| Usage occasion | Class Ⅰ Special clean operating room. | Class ⅡStandard clean operating room. | Class Ⅲ General clean operating room. |
Detail
