Product Details:
Payment & Shipping Terms:
|
| Material: | Spray Coated Steel | Size: | Customized |
|---|---|---|---|
| Design Drawing: | Free Design Drawing | Cleanliness Level: | ISO 5/ Class 100 |
| Name: | Cleanroom Booth/ Laminar Flow Booth | Warranty: | 1 Year |
| High Light: | Class 100 Laminar Flow Booth,Steel Coated Laminar Flow Booth,ISO 5 Laminar Flow Booth |
||

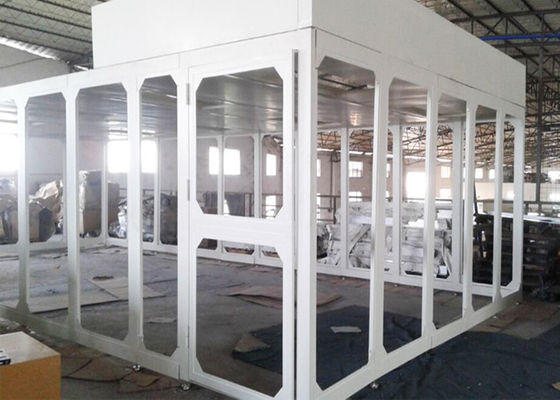

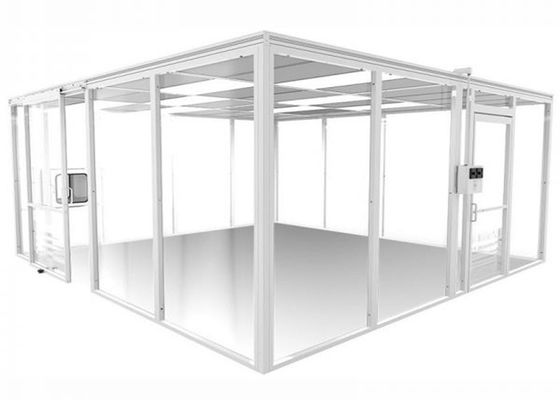

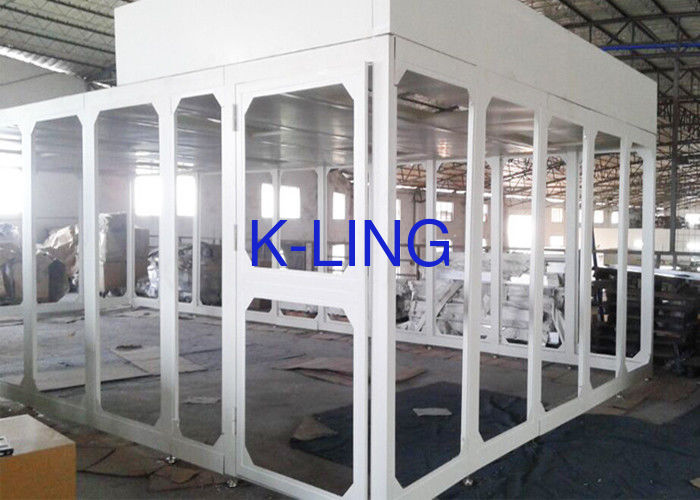

Spray Coated Steel Portable Class 100 Cleanroom Booth/ Laminar Flow Booth
Introduction
With FFU (Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.
Easy installation, low cost, modularized design and easy upgrading
Application: LCM, CMOS Camera Module, Touch Play, Optical Module, FILM, Biological Pharmacy,Packing,Food
The structure is made of coated square steel, and the fan filter unit is assembly used to supply air. The surrounding is covered with anti-static drape, and the top is covered with a blind plate to form aarea. The internal purification class can reach 10 --- 100000.
Structure
Main structure
Frame and sealing blind plate material :
Stainless steel / coated square steel(mm) 50*50 / 100*100
Anodized aluminum (mm) 40*40 / 50 * 50 / 40* 80
Stable, not easy to rust, not easy to produce dust
Quick installation of patent structureman
The blind plate is closed by paint steel panel or stainless steel panel
Surrounding materials adopts:
Anti static drape curtain 2mm ( anti static 106~ 109 Ω)
Grid type soft curtain 0.3/0.5mm
Acrylic 5mm
Tempered glass 5 mm
Clear grid, high transparency, visual transparency, and no aging
Door and featured accessories
Spray Steel plate / stainless steel handle door (double insulated glass window with German DORMA door closer and stainless steel handle)
Or PVC anti static strip curtain
Fixed foot cup / universal wheel
Purification system
FFU fan filter unit
Galvanized casing or stainless steel
Large air flow centrifugal fan
Air flow ( m3 / h) :520/1080/1800/2210
Can run continuously for more than 50,000 hours
Low noise, built in diversion wind tunnel
Mini pleat HEPA filter 99.99@0 .3 um (H 14)
Optional With G4 Pre filter
Control system
Adopt 7 inch / 10 inch LCD touch screen man-machine interface
Switch On/Off and mode settings for FFU (operating mode,
on duty mode)
Realize wind speed adjustment of remote FFU
and fault alarm of FFU
Clean room level
| Level | Maximum Particles/m3 | Equivalent | |||||
| ≥0.1 μm | ≥0.2 μm | ≥0.3 μm | ≥0.5 μm | ≥1 μm | ≥5 μm | ||
| ISO 1 | 10b | d | d | d | d | e | |
| ISO 2 | 100 | 24b | 10b | d | d | e | |
| ISO 3 | 1000 | 237 | 102 | 35b | d | e | Class 1 |
| ISO 4 | 10000 | 2370 | 1020 | 352 | 83b | e | Class 10 |
| ISO 5 | 100000 | 23700 | 10200 | 3520 | 832 | d,e,f | Class 100 |
| ISO 6 | 1000000 | 237000 | 102000 | 35200 | 8320 | 293 | Class 1,000 |
| ISO 7 | c | c | c | 352000 | 83200 | 2930 | Class 10,000 |
| ISO 8 | c | c | c | 3520000 | 832000 | 29300 | Class 100,000 |
| ISO 9 | c | c | c | 35200000 | 8320000 | 293000 | Room Air |
Specification Table
| Area | 15㎡ | 30㎡ | 50㎡ | 100㎡ |
| Material | Aluminum frame/Baking steel plate/lnsulating glass window | |||
| FFU class 1-100 | 12pcs | 24pcs | 48pcs | 96pcs |
| FFU class-1K | 3pcs | 6pcs | 9pcs | 18pcs |
| FFU class-10K | 2pcs | 4pcs | 6pcs | 12pcs |
| Speed (m/s) |
0.45m/s ±20% | 0.45m/s ±20% | ||
| Temperature (optional) |
18-28°C | |||
| Humidity (opiional) |
50-70% | 50-70% | ||
| Illumination | 400-800LUX | |||
| Power | 2.4-7kw | 4.8-10kw | 9.6-19kw | 19.2-30kw |
