| Name: | Laminar Flow Ceiling | Application: | Hospital |
|---|---|---|---|
| Material: | Powder Coated Steel | Size: | Customized |
| Warranty: | 1 Year | Original: | China |
| High Light: | Hospital Laminar Flow Ceiling,Steel Laminar Flow Ceiling,Powder Coated Laminar Flow Ceiling |
||

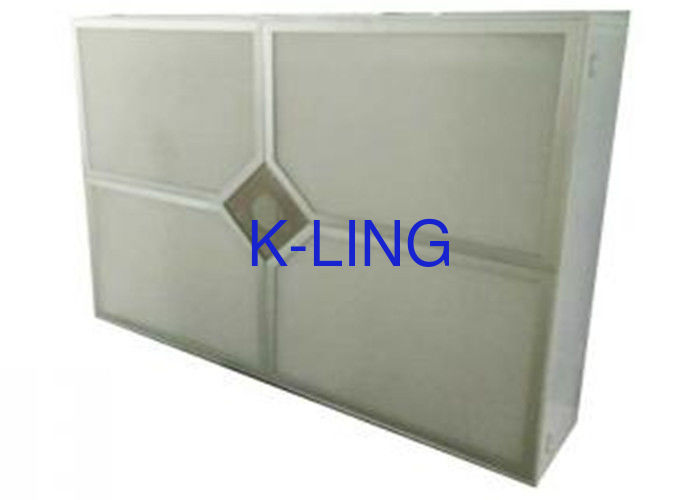

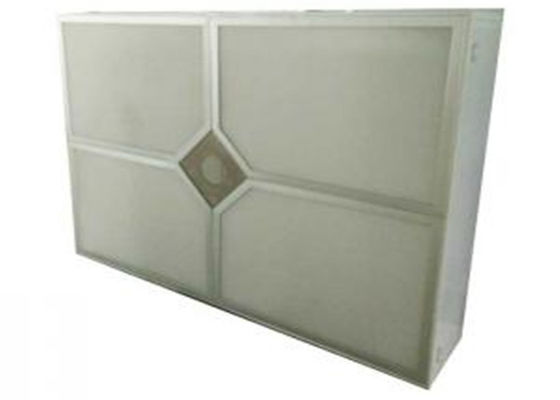

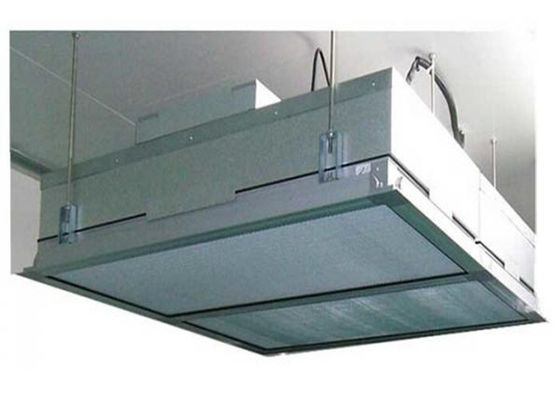

Hospital Laminar Air Flow Ceiling / OT Laminar Supply Laminar Flow Ceiling
Description
The air flow ceiling is widely used at operation room and laminar flow room as final filtration system. It has the effect of a high efficiency filtration, current and airflow compensation function. Anlaitech series clean air ceiling is the crystallization of the experience and practice of the operating room supplying air. This air ceiling has been put into use of verification of nearly 1,000 operating rooms. Its superior performance and unique diffuser can evenly send the air to the work area. The central flow compensation device can effectively eliminate the heat generated updraft of laminar flow of the energy equipment . The Anlaitech air supplying ceilings device is leading a domestic and foreign resistance drain layer technology. The use of this equipment can be a reasonable distribution of clean room airflow, and to effectively guarantee the indoor cleanliness.The air ceiling is widely used at operation room and laminar flow room as final filtration system. It has the effect of a high efficiency filtration, current and airflow compensation function. Anlaitech series clean air ceiling is the crystallization of the experience and practice of the operating room supplying air. This air ceiling has been put into use of verification of nearly 1,000 operating rooms. Its superior performance and unique diffuser can evenly send the air to the work area. The central flow compensation device can effectively eliminate the heat generated updraft of laminar flow of the energy equipment . The Anlaitech air supplying ceilings device is leading a domestic and foreign resistance drain layer technology. The use of this equipment can be a reasonable distribution of clean room airflow, and to effectively guarantee the indoor cleanliness.
Advantages
In order to improve medical care quality, and to reduce postoperative infection, more and more hospitals adopt modern medical purification technology in the Pre-Operation Rooms, Operating Theatres, Delivery Rooms, ICU, Recovery Rooms, etc. It is crucial for clean rooms and operating theatres to be kept dust-free and for moisture and temperature to be regulated. For this reason it is necessary forlaminar flow ceiling to be mapped properly and to be controlled.
Parameter
| Model/parameter | Class Ⅰ | Class Ⅱ | Class Ⅲ |
| Efficiency | 99.99% | ||
| The wind speed(m/s) | 0.45 | 0.3 | 0.23 |
| Air supply size (mm) | 2600×2400 | 2600×1800 | 2600×1400 |
| Boundary dimension (mm) | 2680×2480×500 | 2680×1880×500 | 2680×1480×500 |
| Hepa size and QTY | 610*305*292mm 8pcs | 610*305*292mm 6pcs | 610*305*292mm 4pcs |
| Usage occasion | Class Ⅰ Special clean operating room. | Class ⅡStandard clean operating room. | Class Ⅲ General clean operating room. |
