| Material: | SUS 304 | Application: | Hepa Filter Box |
|---|---|---|---|
| Feature: | Low Noise | Use: | Clean Room |
| Warranty: | 1 Year | Original: | China |
| High Light: | SUS304 Exhaust Fan Filter Box,SUS304 HEPA Filter Box,1500m3/h HEPA Filter Box |
||

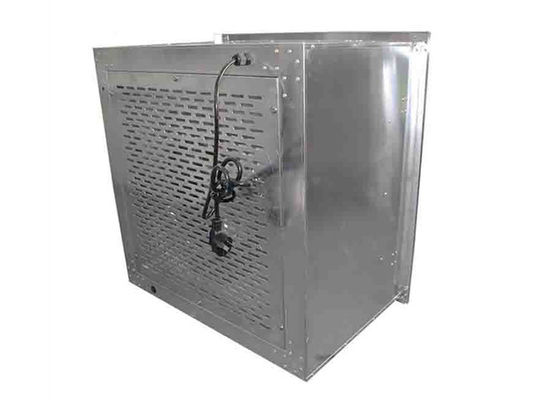

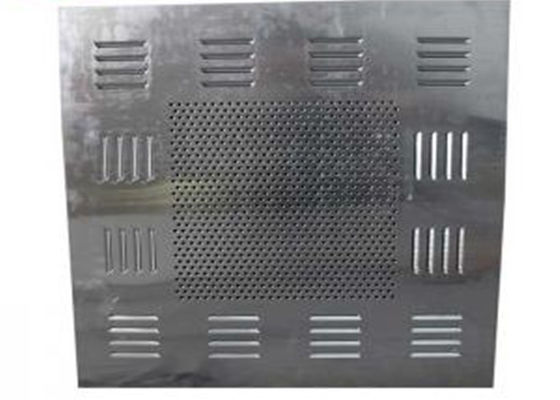

SUS304 Exhaust Fan Filter Box HEPA Filter Box Low Noise Type For Clean Room
Description
The BFU fan filter unit, which uses the latest technology in the United States, is a ceiling unit with a fan inside, used for turbulent flow and laminar flow clean room. BFU fan filter unit is one of the quietest and best-priced units on the market.
The BFU is an upgraded alternative to the FFU and hepa box. It is also a self-contained, modular end air supply with filtered power. BFU adopts the modern large-area new clean room clean safety theory, inhaling air from the top, and then filtering out the air.
What is the difference between FFU and BFU?
In order to adapt to different environments, there are differences in design.
The FFU is generally used as a purification unit on a purification device, and a high-level clean room as a supply unit.
BFU is a ceiling-type air supply, which is often used as a purification unit in a purification workshop with a relatively low purification level. Because of its large air outlet speed, it is easier for the workshop to mix and flow than the FFU when the air intake volume of the low-level workshop is small. Self-cleaning time.
Parameter
| Name | BFU |
| Size | W700*D700*H800mm |
| Flange size | 350*250mm(Side supply air or Top supply air).or round flange |
| Material | Powder coating or stainless steel or other steel |
| Air flow | 1500m³/h |
| Average wind velocity | 1m/s+-20% |
| Power | 130w |
| Power supply | 220V/50HZ |
| Noise | ≤60db(a) |
| Hepa size | 610*610*220mm |
| Hepa frame | Galvanized |
| Efficiency | Hepa 99.99% 0.3um |
| Media | Moisture-proof ultra-fine glass fiber |
| More information | |
| Port | Shenzhen or Guangzhou |
| Terms of Payment | 30% by T/T in advance, the balance by T/T 7 days before the delivery. |
| Trade Terms | EXW,FOB,CIF,C&F |
| Production Abililty | 18000-20000 Pcs per month |
| Main Export Market | America, Europe, Middle East,etc and have got a lot of acclaims from the customers |
Others
1)BFU can be customized according to the specific requirements of customers. BFU prices of different sizes, materials and performances may be slightly different. welcome to contact us for the price.
2)BFU is guaranteed for one year.
After the BFU is running, it should be checked regularly to test whether its high-efficiency filter can work normally. If it does not meet the requirements, it should be notified to the manufacturer as soon as possible.
