| Wind Direction: | Front Side | Type: | Horizontal Laminar Air Flow Cabinet |
|---|---|---|---|
| Cleanliness Level: | Class 100 | Material: | SUS 304/ Powder Coated Steel |
| Warranty: | 1 Year | Original: | China |
| High Light: | Horizontal Laminar Air Flow Cabinet,Class 100 Air Flow Cabinet,powder coated steel Air Flow Cabinet |
||

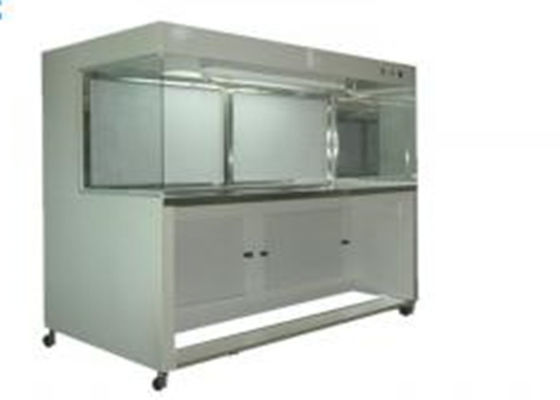

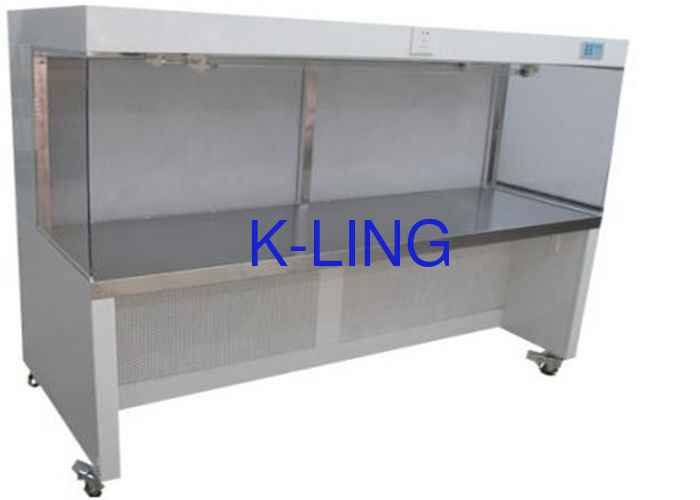

Horizontal Laminar Air Flow Cabinet / Clean Bench Class 100 Cleanliness Level
Description:
Laminar flow cabinet / clean bench is a specialized equipment to bring high cleanliness to partial area.
The bench top material: Stainless steel 304
Framework: High quality cold rolled steel plate with powder coated or stainless steel
Application:
It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.
Optional accessory:
1. Hepa filter or ULPA filter
2. Static-free top or stainless steel top, the top can be punched
3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.
4. Domestic or EBM fans
5. Pressure gauge
Design Drawing
Standard size and specification:
Model |
KEL-LAF-900 |
KEL-LAF-1300 |
KEL-LAF-1600 |
KEL-LAF-1900 |
| Dimension (W x D x H) mm | 900x850x1480 | 1300x850x1480 | 1600x850x1480 | 1900X850X1480 |
| Size for working area (W x D x H)mm | 820x550x610 | 1220x550x610 | 1520x550x610 | 1820X550X610 |
| Suitable people | 1 man | 1-2 men | 2-3 men | 3 men |
| Size of HEPA filter(mm) | 820x610x69 | 1220x610x69 | 915x610x69 610x 610x69 | 915 x 610 x 69 |
| QTY of HEPA filter (pcs) | 1 | 1 | 1/1 | 2 |
| Noise | ≤58dB | ≤58dB | ≤58dB | ≤62dB |
| Blow power | 320W | 320W | 370W | 320W |
| Fluorescent lamp | 20Wx1 | 20Wx1 | 20W x 2 | 30Wx2 |
| Material of Bench top | SUS304 | |||
| Produce/Inspection standard | US Federal standard 209E | |||
| Air velocity | 0.35-0.6m/s | |||
| Voltage | 380V/50Hz/3Ph | |||
| Voltage | AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph | |||
| Cleanliness Class | 100 class (US Federal standard 209E) | |||
| Efficiency | 99.99% @0.3μm | |||
