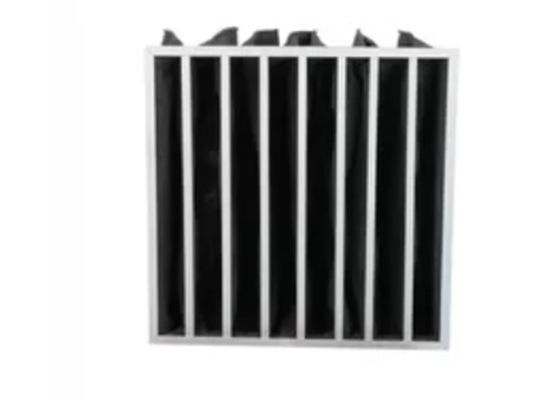

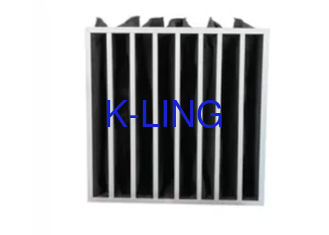

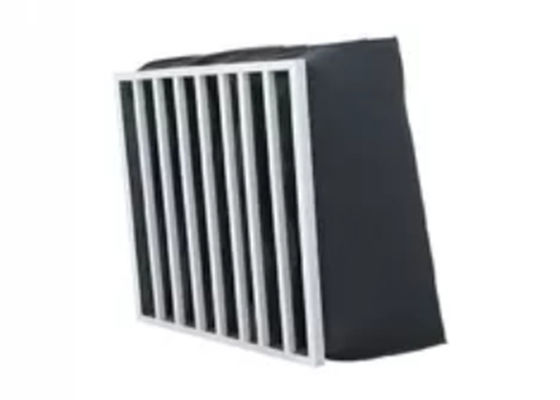

Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration

Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration
Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration

Large Image :  Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-ABG
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Material: Activated Carbon Sticky Cotton Type: Bag Filter
Name: Pocket Air Filter Application: Air Filtration
Warranty: 1 Year Original: China
High Light:

KEL-ABG Activated Carbon Air Filter

,

hepa carbon filter air purifier

Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration







Product Description



the activated carbon filter is another effective air filtering material. The activated carbon filter panel is made from activated carbon form support mesh and frame. The activated carbon foam has high carbon content, which can ensure the high filtering and purifying efficiency. The support mesh of activated carbon filter panel can be welded wire mesh and expanded metal mesh. The rigid support mesh can maintain the shape of filter panel and extend the service life. Frame of the activated carbon filter panel is aluminum alloy frame or galvanized steel frame, which is corrosion and rust resistance





Pocket filters structure:


Bag-style medium-efficiency filter with its unique bag structure ensures that the air flow is evenly filled with the entire bag. The unique hot-melt technology prevents over-squeezing or leakage between the bags, which reduces resistance and maximizes dust holding capacity. The reinforced "bag support grille" prevents the filter from shrinking or bending under extreme operating conditions.

The medium-efficiency bag filter can be used as an ideal medium-efficiency filter for use in environments with high humidity, high airflow, and high dust loads. After the introduction of the bag filters, their application in the pharmaceutical, automotive and food manufacturing industries, commercial buildings, and various industrial and ventilation systems have successfully demonstrated that they have increased their industry standards with value and performance.

  The EFS F6 Rigid Pocket Filter is designed to withstand extreme humidity and high velocities & turbulence, and is excellent for all types of air handling systems.

  Progressively structured design provides exceptionally low pressure drop at high efficiency levels.

  The self-supported filter pockets stay rigid in the air stream.

  The filter element is free of metal parts, reducing the risk of corrosion and punctures.

  Polyurethane header ensures a leak-proof bonding of pockets to header.

  The EFS F6 Rigid Pocket Filter is lightweight and easy to handle, which provides exceptionally low pressure drop at high efficiency levels.

  The spacers channel the air entering the pocket, which result in a lower pressure drop and lower energy costs.

  Synthetic media rated at ASHRAE 65% (MERV 11).

  Non-shedding fibers are specifically intended to resist moisture and chemicals.

  Resists bacterial growth





Standard size and Specification:





Model Outside dimensions(mm) Rated air flow(m³/h) Initial resistance(Pa) Efficiency
(Colorimetry)
Pockets
KEL-1600 595x295x500mm
24"x12"x20"
1600m³/h 50Pa 40-50% F5/Yellow 3
KEL-3200 595x595x500mm
24"x24"x20"
3200m³/h 6
KEL-1600 595x295x500mm
24"x12"x20"
1600m³/h 55Pa 60-70% F6/Orange 3
KEL-3200 595x595x500mm
24"x24"x20"
3200m³/h 6
KEL-1300 495x295x500mm
20"x12"x20"
1300m³/h 110Pa 80-85% F7/Purple 3
KEL-1600 595x295x500mm
24"x12"x20"
1600m³/h 3
KEL-3200 595x595x500mm
24"x24"x20"
3200m³/h 10
KEL-1600 595x295x500mm
24"x12"x20"
1600m³/h 120Pa 90-95% F8/Primrose Yellow 3
KEL-3200 595x595x500mm
24"x24"x20"
3200m³/h 10



Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration 0

Multi Pocket Activated Carbon Air Filter Bag Structure For Air Filtration 1
