Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency

Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency
Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency

Large Image :  Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-PAF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 set/ month
Detailed Product Description
Material: Polyester Type: Middle Efficiency Air Filter
Air Volume: 3500m³/h Application:: AHU/HVAC/The Ventilation System
Frame Material: Aluminum Or Galvanized Or Plastic Bag Number: 6pcs Or Custom
High Light:

3500m³/H Pocket Air Filter

,

CE hepa activated carbon filter

Polyester Ahu 3500m³/H Pocket Air Filter/ Bag Filter F7 To F9 Efficiency





Bag filter description


KEL company's F7/F8 bag air filter, the frame is a high quality galvanized frame or aluminum alloy frame. F7/F8 bag filter air filter filter material for glass fiber, non-woven fabrics, using ultrasonic sewing technology, internal drawing technology. Our F7/F8 bag air filters are manufactured using materials that meet international standards.
Suitable for intermediate filtration in pharmaceutical, electronics, food, hospitals, cosmetics, semiconductors, precision machinery, automotive and other industries



Bag-type medium efficiency filters are widely used in industrial air purification systems, pharmaceuticals, hospitals, electronics, food and other industrial purification, and can also be used as front-end filtration of high-efficiency air filters to reduce the load of high-efficiency air filters and extend their use. life. Due to the large windward surface of the bag filter, it has a large dust holding capacity and a low wind speed, and is considered to be the best medium-efficiency filter structure at present.




Bag filter features:


1).Welded edge to avoid leakage
2).Self-supported
3).Fire retardant
4).Fixed airflow tunnle insdie each pocket.
5).High volume and capapcity





Advantage



Medium-effect bag filter with sturdy metal frame structure, optional aluminum frame, galvanized iron; high dust holding capacity, low resistance; fluffy multi-layer synthetic fiber filter paper; ultrasonic seamless bag structure; efficiency: 40~45% (F5), 60 ~65% (F6), 80~85% (F7), 90~95% (F8), ≤95% (F9). Medium-effect bag filter is a medium-efficiency filter. It is mainly used in air-conditioning systems. It is mainly made of high-quality non-woven materials. It has a large dust holding capacity and is used to filter particles of 1-5μm dust with low resistance. The advantage of large air volume.





Parameter



  Dimension(MM) Rated air volume Effectiveness Colour Initial resistance
KEL-011 592*592*381-6P 3600m³/h F5(45%) white ≤85Pa
KEL-012 290*592*381-3P 1500m³/h F6(65%) green
KEL-013 490*592*381-5P 3200m³/h F7(85%) pink
KEL-014 490*490*381-5P 2800m³/h F8(95%) yellow
KEL-011-01 592*592*600-6P 3600m³/h G4(35%) jacinth
KEL-011-02 592*592*600-6P 1500m³/h F5(45%) earthy yellow
KEL-011-03 592*592*600-6P 3200m³/h F6(65%) green
KEL-011-04 592*592*600-6P 2800m³/h F7(85%) pink
KEL-011-05 592*592*600-6P 2800m³/h F8(95%) yellow
KEL-011-06 592*592*600-6P 2800m³/h F9(99%) white
Special size and specifications can be made according to customer requirements

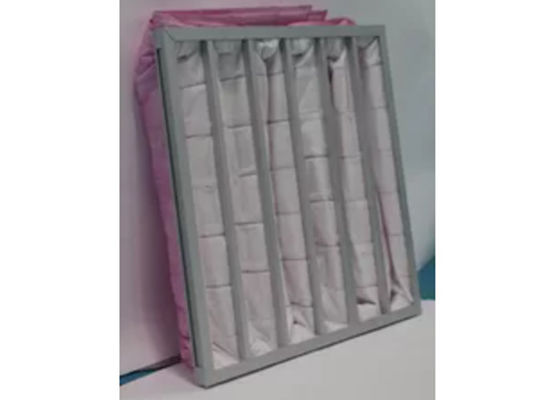

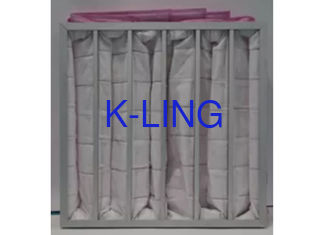

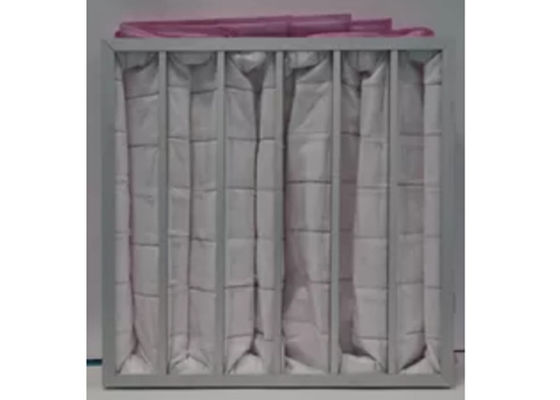

Polyester Ahu 3500m³/H Pocket Air Filter / Bag Filter F7 To F9 Efficiency 0
