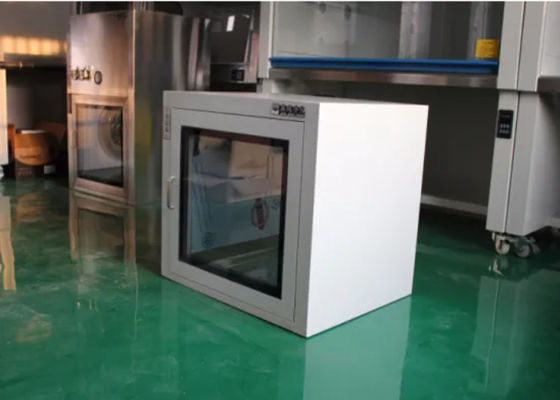

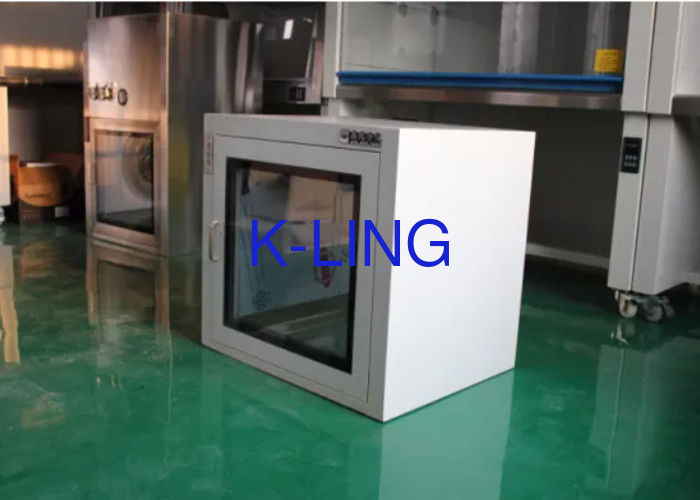

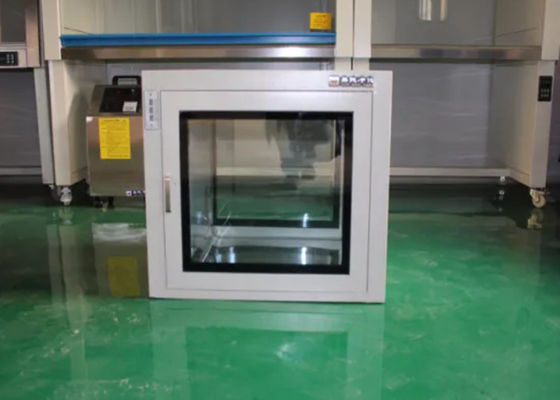

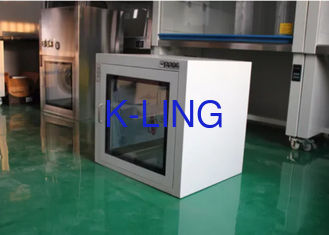

Electronic Interlock Pharmaceutical Cleanroom Pass Box Powder coated steel or SUS 304
Introduction
Electronic Interlock Pharmaceutical Passbox adopts the SUS304 stainless steel as the material for interior and exterior product body and the two doors. The thickness of the stainless steel is 1.0mm. Meanwhile, the product is equipped with the Taihu ultraviolet lamp with the power of 10W and the wavelength of 254nm. It can get the ideal sterilization effect. In addition, the embedded type installation of ultraviolet lamp can reduce the contact possibility of delivered articles and ultraviolet lamp tube to ensure safe use.
The two doors of the easy cleaning cleanroom pass box take usage of mechanical interlocking to guarantee the doors cannot be opened at the same time. The doors are flat, smooth and have no welding spot. Meanwhile, they are furnished with transparent visible observation windows. The sealing strip is also employed on the two doors to ensure the sealing performance. Meanwhile, designed with round corner, the interior of the product is nice and easy for cleaning.
Technical Specifications
| Type | Outside Dimension (W×D×H) (mm) | Inside Dimension (W×D×H) (mm) | Remark |
| 1 | 600×460×520 | 400×400×400 | SUS304 Stainless Steel |
| 2 | 700×560×620 | 500×500×500 | |
| 3 | 800×660×720 | 600×600×600 | |
| 4 | 900×760×820 | 700×700×700 | |
| 5 | 1000×860×920 | 800×800×800 |
Note
UV also called shortwave sterilizing ultraviolet, the UVC wave band has wavelength ranging from 200 to 275nm. It has the weakest penetrability and cannot penetrate most of the transparent glass and plastic. The ozonosphere can absorb almost all the shortwave ultraviolet in the sunlight. The shortwave ultraviolet can cause severe damage to human body. Short time irradiation can burn the skin. And long-term or high-intensity irradiation can cause skin cancer. The ultraviolet lamp can emit the UVC shortwave ultraviolet. So we warn that the ultraviolet lamp cannot be opened when the doors of the pass box are in the open state to avoid causing harm.
Our company is a professional easy cleaning cleanroom pass box manufacturer in China. We provide a variety of products, including stainless steel clean room pass box, single person vertical flow clean bench, single person air shower room, and more.
