CE And ISO Certification Air Shower Tunnel Customized Size and Material
Introduction
This type air shower tunnel is equipped with centrifugal fan and the primary and high efficiency air filters. The product has the features of elegant appearance, compact structure, easy maintenance and simple operation. Meanwhile, we can produce the people and cargo air shower room with the electronic interlocking and infrared sensing device according to customers' needs.
Detail
Type: Double Person SUS304 Air Shower
˙ Outside Dimension (mm):1400W×3000D ×2100H
˙ Dimension of Air Shower Area (mm):800W×900D×1960H
˙ Applicable Number of People:
˙ Materials: All Full Set Stainless SUS304 or coated cold rolled steel
˙ Number of Nozzle:12(Two Sides) Stainless Steel 304
˙ Mouth Diameter of Nozzle:Φ30mm
˙ Control panel:sus304 frame,LCD display, PLC control system
˙ Speed of Air Flow at the Nozzle:>28m/s
˙ Dimension of High Efficiency Air Filter (mm):600×600 ×120
˙ Lock:Electronic Interlock,two door can't open at the same time.
˙ Pre-Filter:600*350*10(mm),2PCs,synthetic fiber with aluminum
˙ HEPA Filter:2PCs,600*600*120(mm),
˙ FAN:2PCs,Power:0.55KW, Air Volume:1000/PCS,Air Pressure:1200Pa
˙ LAMP:1PCs LED light,Power:1*7W.
˙ Shower Time:0-99s adjustment
˙ HEPA Filter Efficiency:H13,99.995%@0.38um.
˙ Maximum Power Consumption:1.1KW
˙ Voltage ˙available:380VAC / 5Phase,50HZ(can make other standard voltage)
Parameter
| Model | KEL-AS-S1 | KEL-AS-S2 | KEL-AS-S3 |
| Applicable Number of People | 1 | 2-4 | 4-5 |
| Air Shower Time | 0- 99s (Adjustable) | ||
| Number of Nozzle | 12 (Two Sides) | 24 (Two Sides) | 36 (Two Sides) |
| Mouth Diameter of Nozzle | Φ 30 mm | Φ 30 mm | Φ30 mm |
| Speed of Air Flow at the Nozzle | >25m/s | >25m/s | >25m/s |
| Dimension of High Efficiency Air Filter (mm) | 600×600×120 | 600 ×600×120 | 600×600×120 |
| Dimension of Air Shower Area (mm) | 800×900×196 0 | 800×1900×196 0 | 800×2900×196 0 |
| Outside Dimension (mm) | 1400×1000×210 0 | 1400×2000×2100 | 1400×3000×2100 |
| Power Supply :380V,50HZ, we can made nonstandard voltage for different country. | |||
| Maximum Power Consumption | 1.1KW | 2.2KW | 3.3KW |

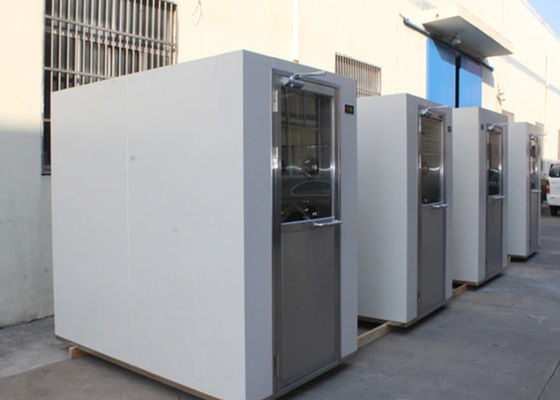

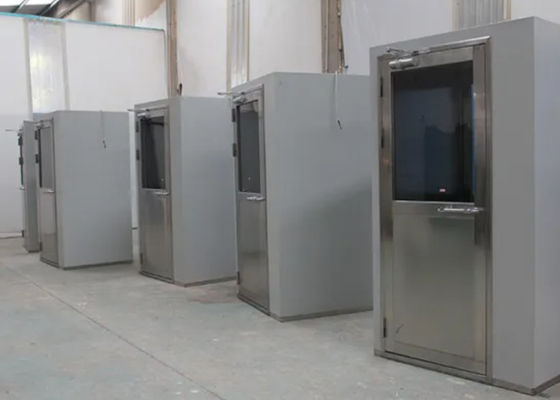

Detail picture
