| Material: | SUS 304 | Sterilization: | UV Lamp |
|---|---|---|---|
| Name: | Clean Bench | Type: | Laminar Flow Cabinet |
| Original: | China | Warranty: | 1 Year |
| High Light: | SUS laminar flow biosafety cabinet,SUS laminar flow booth |
||

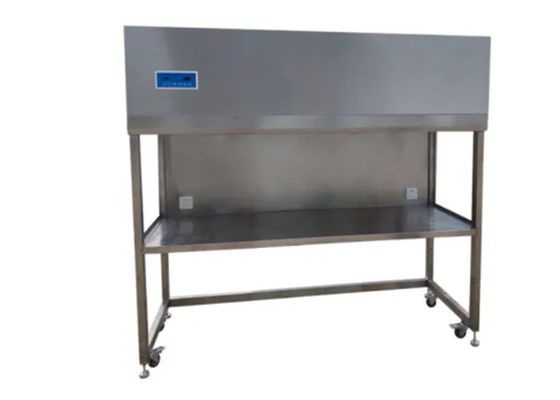

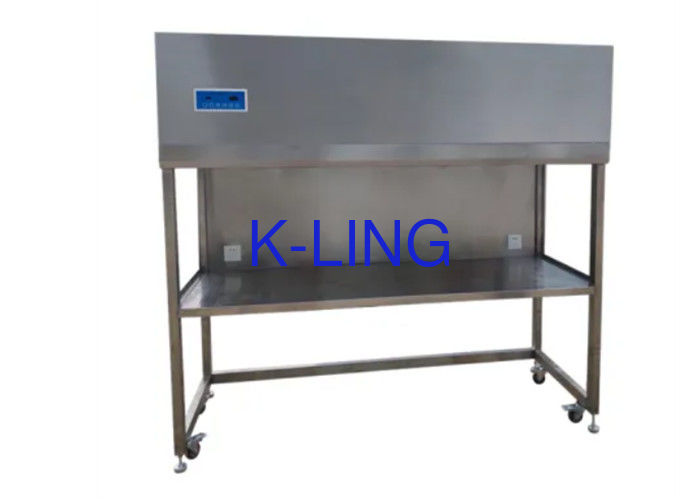

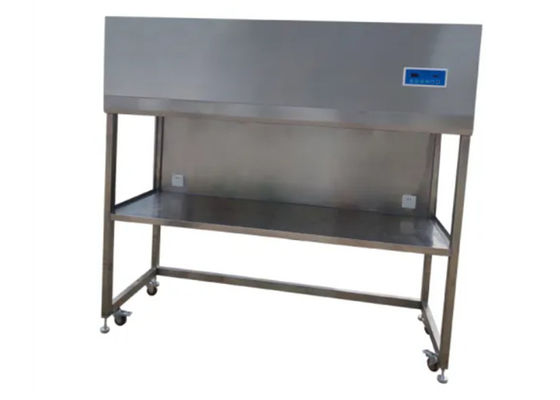

SUS 304 Material Sterilizing Clean Bench Laminar Flow Cabinet With UV Lamp
Description
The Vertical Airflow Bench is a sophisticated laboratory device designed for the purification and filtration of air. It is ideal for controlling air pollution, preventing the spread of infectious diseases, and protecting the environment. This lab equipment is widely used in pharmaceutical, biotech, chemical, and other scientific research facilities.
Detail
Parameter
|
Model
|
KEL-CB-1
|
KEL-CB-2 |
KEL-CB-3
|
|
External Dimension
|
1120*760*1850
|
1260*660*1500
|
2000*800*1900
|
|
Internal work zone
|
800*700*800
|
1180*640*700
|
1920*720*700
|
|
Filter Dimension
|
915*610*69*1
|
1170*570*69*1
|
915*610*69*2
|
|
Reated Air Flow(m3/h)
|
900
|
1100
|
1500
|
|
Air Velocity
|
0.45 m/s ±20%
|
||
|
Clean Class Level
|
Class 100 (ISO14644-1 International Standard)
|
||
|
HEPA Efficiency
|
99.99% @0.3 um
|
||
|
Noise
|
<50 dB
|
||
|
Voltage
|
220V/50Hz
|
||
|
Table Material
|
201/304 sanded stainless steel
|
||
Product Features:
The Vertical Airflow Bench has several innovative features that make it stand out among its competitors. Here are some of its key features:
1. HEPA Filter: The high-efficiency particulate air (HEPA) filter can trap and remove particles as small as 0.3 microns with an efficiency of 99.99%.
2. Vertical Airflow: The vertical laminar airflow provides a clean working area, preventing cross-contamination of samples and specimens.
3. UV Lamp: The built-in UV lamp sterilizes the workspace and reduces the risk of contamination.
4. LCD Display: The easy-to-read LCD display shows the real-time airflow velocity and timer setting.
5. Whisper-Quiet Operation: The low-noise motor ensures a quiet working environment for laboratory professionals.
Working Principle:
The Vertical Airflow Bench works based on the principle of laminar airflow. The air is purified by passing through an efficient HEPA filter, which traps and removes particles like dust, pollen, and bacteria. The filtered air is then directed through vertical airflow holes, creating a sterile and clean working area. The UV lamp further sterilizes the workspace, making it ready for experiments and research.
Design Drawing
