Product Details:
Payment & Shipping Terms:
|
| Material: | Powder Coated Steel/ SUS 304 | Size: | Customized |
|---|---|---|---|
| Certification: | CE | Type: | Air Outlet |
| Filter: | Hepa Filter | Original: | China |
| High Light: | Air Outlet Filter Box Diffuser,SUS304 hepa filter terminal box |
||

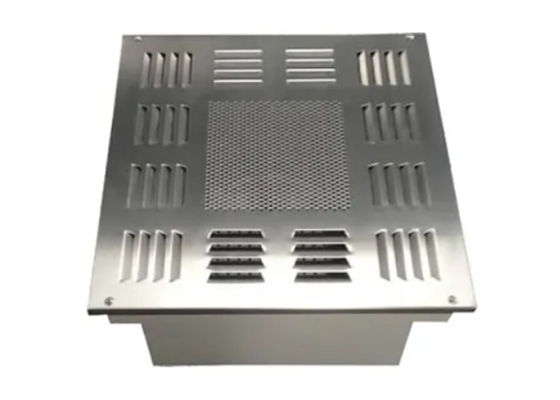

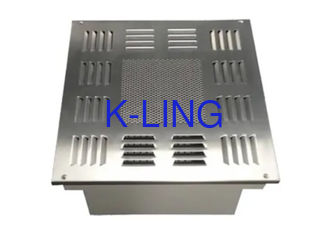

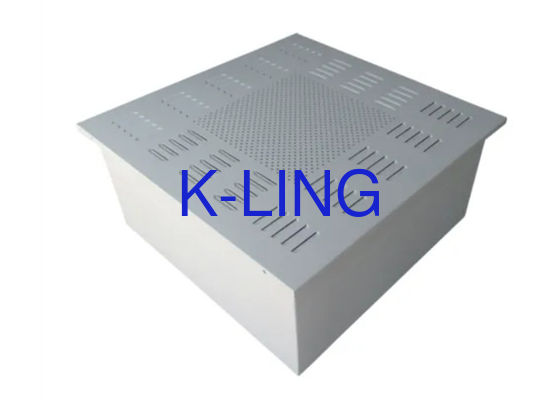

Customized Ceiling Air Outlet Filter Box Diffuser With HEPA Filter Box
Introduction
The high efficiency air supply outlet is an ideal terminal filter device for 10000, 10000 and 100000 grade purifying air conditioning system, which can be widely used in the fields of medicine, sanitation, electronics, chemical industry and so on. The high-efficiency air supply outlet is used as the terminal filter device to transform and build 1000-300000 clean rooms at all levels. It is the key equipment to meet the purification requirements. The high-efficiency air supply outlet includes a static pressure box, a diversion plate, a high-efficiency filter, and an air flow regulating valve. The interface with the air duct can be top-connected or side-connected.
Characteristic
The box body is made of high quality cold rolled steel sheet. *Surface electrostatic spraying *Beautiful and generous, compact structure, easy to install and maintain *The divergent panels on the outlet surface are aluminium sprayed, cold rolled steel sprayed or stainless steel.
Parameter
|
model
|
Rated air volume
|
Filter size
W*H*D
|
Dimensions
W*L*H/h
|
Duct flange size
A*B
|
Ceiling opening size
W*L
|
weight
Kg
|
|
KEL-320A
|
500
|
320*320*220
|
370*370*570/400
|
200*200
|
380*380
|
20
|
|
KEL-484A
|
1000
|
484*484*220
|
534*534*570/400
|
320*200
|
544*544
|
26
|
|
KEL-484A
|
610*610*150
|
660*660*550/400
|
320*250
|
670*670
|
30
|
|
|
KEL-726A
|
1500
|
726*484*220
|
776*534*570/400
|
400*200
|
786*544
|
35
|
|
KEL-630A
|
630*630*220
|
680*680*620/400
|
320*250
|
690*690
|
40
|
|
|
KEL-951A
|
915*610*150
|
965*660*550/400
|
500*250
|
975*670
|
40
|
|
|
KEL-968A
|
2000
|
968*484*220
|
1018*534*570/400
|
500*200
|
1028*544
|
50
|
|
KEL-1220A
|
1220*610*150
|
1270*660*550/400
|
630*250
|
1280*670
|
55
|
|
|
KEL-945A
|
2200
|
945*630*220
|
995*680*620/400
|
500*250
|
1005*690
|
50
|
|
KEL-1260A
|
3000
|
1260*630*220
|
1310*680*620/400
|
630*250
|
1320*690
|
60
|
Main Features
The static pressure box is made of low carbon steel material, and the high efficiency filter and static pressure box are made into one whole. At the air inlet of the static pressure box, the regulating valve adjusts the air supply uniformity and the static pressure effect. Light weight, easy to install and more convenient, especially suitable for installation in clean rooms in the form of aluminum alloy keels.
