Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Name: | Dispensing Booth |
|---|---|---|---|
| Other Name: | Weighing Room | Material: | SUS 304 |
| Original: | China | Warranty: | 1 Year |
| High Light: | CE Dispensing booth,Negative Pressure Weighing Room |
||

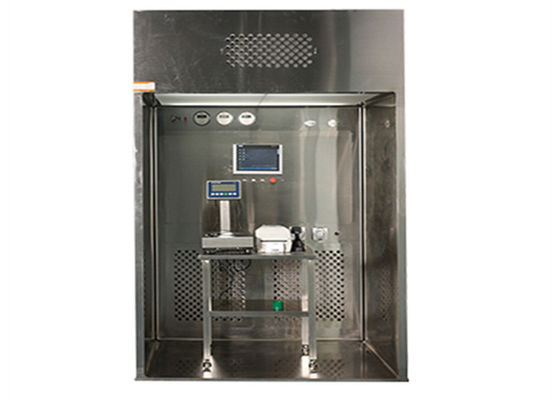

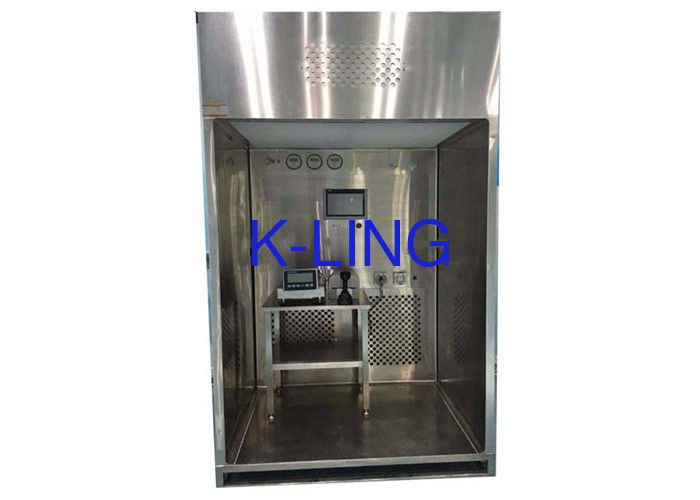

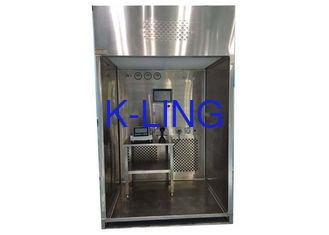

CE Certification Negative Pressure Weighing Room/Dispensing booth SUS 304
Application:
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
Features:
1. Customized design is welcome.
2. Unique designed air duct effectively controls the noise.
3. Smooth transitions of wall and ground can eliminate the blind angle.
4. Differential pressure gauge is equipped to real-time monitor the filters.
5. Intelligent control mode and alarm system ensure the reliability of running.
6. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
7. Uniform flow design of main working area can protects the operators and prevent environmental pollution
and cross contamination of products.
8. Dispensing Booth(Sampling or Weighing Booth) has primary filters, medium efficiency filters and HEPA filters to keep air cleanliness of work area.
Parameter
| Model | KEL - DB1000 | KEL - DB1500 | KEL- DB2000 |
| External size (W*D*H)mm | 1100X1300X2650 | 1600X1800X2650 | 2100X2300X2650 |
| Internal size (W*D*H)mm | 1000X1000X2150 | 1500X1500X2150 | 2000X2000X2150 |
| Cleanliness | Class 100 | ||
| HEAP Filter | 99.995% @0.3um | ||
| Pre-Filter | 75% @5um | ||
| Air Velocity | 0.3-0.6m/s | ||
| Noise | 57-65 dB | ||
| Material | Stainlesst Steel 304 / 201 | ||
| Standard | ( FS209E ) USA | ||
| Power | 380V/ 50HZ | ||
