Product Details:
Payment & Shipping Terms:
|
| Model: | Customized | Size: | As Customer Requirement |
|---|---|---|---|
| Material: | SUS 304/ Powder Coated Steel | Design Drawing: | Free |
| Warranty: | 1 Year | Original: | China |
| High Light: | SUS 304 stainless steel air shower,HEPA Filter stainless steel air shower,22m/s air shower room |
||

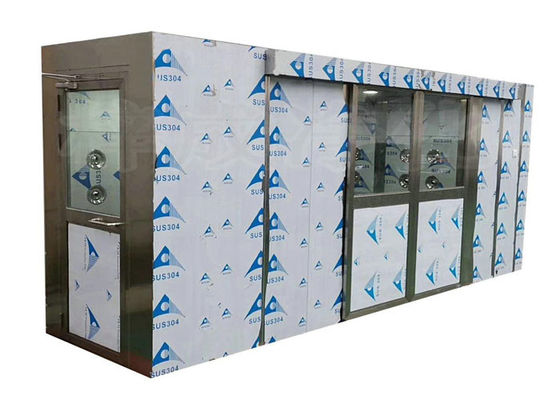

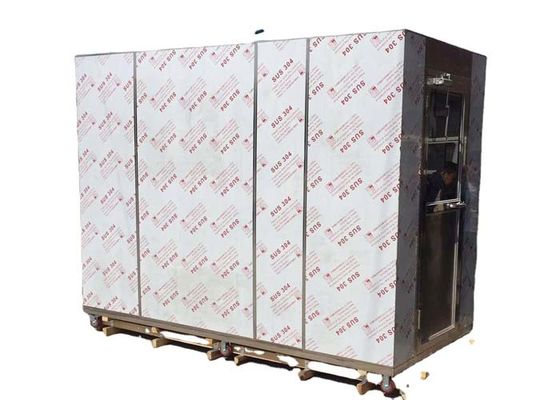

Customized Airlock Cleanroom Air Shower Tunnel With Pre Filter And HEPA Filter
Product Properties
1.Completely self-contained, pre-wired, fully equipped Air Shower/Tunnel systems help
solve decontamination problems
2.Infrared Sensor for Automatic Door
3. Smart LCD Touchscreen PLC Control Panel
4. Energy-efficient LED lighting mounted on the ceiling
5. Inter Phone, Auto-opening Door, Ionizing Bar can be optional
6. Available in white powder-coated or stainless steel to meet various cleanroom
requirements
Application
Widely used in electronics, photoelectric, precision instruments, new energy, pharmaceutical,
research institutions, food and other industrial sectors and scientific laboratories, to ensure that
the working area cleanliness and wind speed in an ideal state all the time.
Structure
Parameter
| Model | KEL-AS-1 | KEL-AS-2 | KEL-AS-3 |
| Overall size(mm) | W1290*L1000*H2180 | W1290*L2000*H2180 | W1290*L3000*H2180 |
| Air shower size(mm) | W790*L860*H1885 | W790*L1860*H1885 | W790*L2860*H1885 |
| Nozzle air speed(m/s) | 18-22 | ||
| Nozzle Q'ty | 12 | 24 | 36 |
| Air Shower time(s) | Default setting is 10s, 10-99s (adjustable) | ||
| Target users | 1-2 | 2-4 | 3-6 |
| Cabinet material | High quality stainless steel | ||
| Door material | High quality stainless steel | ||
| Bottom plate | High quality stainless steel | ||
| HEPA size | 610*610*120x2 | 610*610*120x4 | 610*610*120x6 |
| Filter efficiency | 99.99%@0.5u | ||
| Fan Power(W) | 550x2 | 550x4 | 550x6 |
| LED light Power | 3x1 | 3x2 | 3x3 |
| Power supply voltage | 380V50Hz( (Also Available in 220V and 110V)) | ||
