G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory

G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory
G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory

Large Image :  G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory

Product Details:
Place of Origin: CHINA
Brand Name: KEL
Certification: CE
Model Number: KEL-AS
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: plywood packing
Delivery Time: 8-15 working day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 set/ month
Detailed Product Description
Application: Pharmaceutical Factory Type: Clean Room Door
Name: Air Shower Tunnel Size: Customized
Warranty: 1 Year Original: China
High Light:

G1 HEPA filter air shower unit

,

201 stainless steel air shower unit

,

22m/s air shower clean room

Air Shower Tunnel Used As The Clean Room Entrance Door For Pharmaceutical Factory





Air shower Introduction

Personal( Cargo) air shower is a purification equipment for personal or material, which uses high-speed (≥25m/s) clean air blown and clear the particles attached on personal clothing or material surface. Because two doors of the personal( Cargo) air shower can not be opened (interlocked) at same time, played as a role of gas chamber to prevent outside air entering the clean room and maintain the positive pressure of the clean room; Personal( Cargo) air shower room in addition to there are certain purifying effect, it is as a person entering the clean zone boundaries, but also has a warning will help standardize personnel activities in the clean room.

KEL brand Air shower designed in line with clean principle. Single-chip high- set microprocessor controller, intelligent voice prompts, LCD display, infrared automatic sensing air showering, automatic electronic sensor interlock.



Product Feature:



Special ultrathin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.



With G1 and H13 HEPA filter two level filtration to ensure the purification class;



High quality infrared sensor automatically showering;



Imported electronic interlock device, two doors can not opened at same time;



Adopts single chip microcomputer control, LCD display working status;



Built-in many sets of operating procedures, can be convenient and flexible call. Intelligent man-machine dialogue interface makes operation chain, such as real-time monitoring state.



Standard of the modular design, make field assembly faster and more convenient maintenance.



But according to user needs and site condition transformation function and form.





Parameter





model KEL-AS-1 KEL-AS-2 KEL-AS-3
name Single blow Double blow Multiplayer
Dimensions 1000(L)*1240(W)*2050(H)mm 1500(L)*1240(W)*2050(H)mm 2000(L)*1240(W)*2050(H)mm
Wind shower area size 860(L)*790(W)*1900(H)mm 1360(L)*790(W)*1900(H)mm 1860(L)*790(W)*1900(H)mm
Nozzle number ’12 ‘18 ’24
Wind speed at the nozzle 18-22m/s
Cabinet material Cold-rolled steel plate electrostatic spray, stainless steel plate (various options)
Door material 201 stainless steel
Base plate material 201 stainless steel
Blow control PLC control panel-LED digital display status
Blowing time 0-99 seconds can be high-key (factory default 10 seconds)
HEPA filter size 610(L)*610(W)*120(H)mm 610(L)*610(W)*120(H)mm 610(L)*610(W)*120(H)mm
Filtration efficiency HEPA 99.9% @ 0.5um
Fan Blue sky fan
Number of fans/power 750W*1 550W*2 750W*2
Number of fluorescent lamps/power 20W*1 20W*1 20W*2
voltage AC 380V ,50HZ
Applicable number 1-2 1-3 1-4





Display

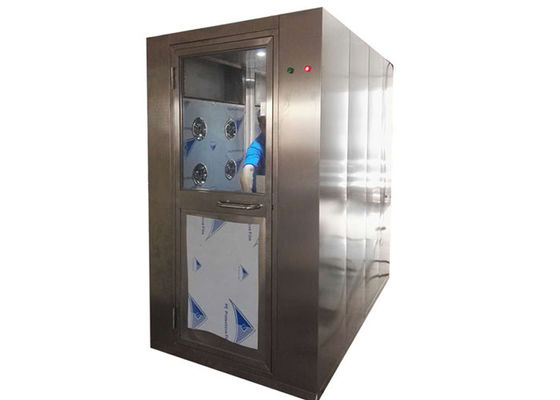

G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory 0

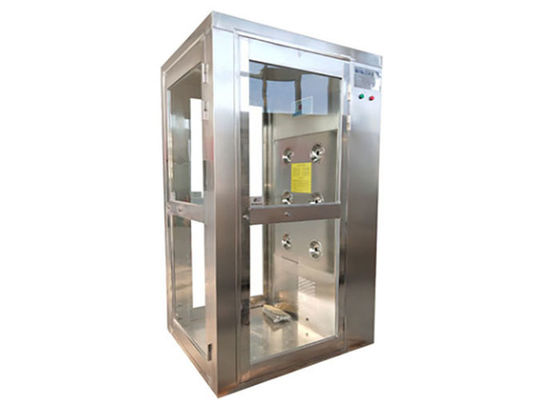

G1 HEPA Filter Air Shower Unit For Pharmaceutical Factory 1
