| Name: | Cleanroom Air Shower | Application: | Pharmaceutical Industry |
|---|---|---|---|
| Efficiency: | Class 100 | Material: | SUS 304/ Powder Coated Steel |
| Warranty: | 1 Year | Original: | China |
| High Light: | 27m/s class 100 clean room,automatically blow air shower room,SUS 304 class 100 clean room |
||
Clean Room For pharmaceutical Industry Class 100 Portable Cleanroom Air Shower
Introduction
1. Air shower's humanized high-tech intelligent programmable micro-processing controller that giving each user a great degree of convenience, specificity and security control
2.Are used to remove personal contaminate off before they enter into the clean area or after exit from the contaminated area.
3.Create a protective barrier between the clean and contaminated areas.
Parameter
| Model | KEL-AS-1300-P1 | KEL-1300-PQ1 | KEL-1300-P2 | KEL-1300-P3 |
|
Outer Dimensions W×D×H(mm) |
1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
|
Inner Dimensions W1×D1×H1(mm) |
800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
| Speed (m/s) | 25~27 | |||
| Nozzle No. | 12 | 18 | 24 | 36 |
| Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
| Door: 5mm glass and built-in automatic door closer | ||||
| Lighting | LED, built-in type | |||
| Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
| HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
| Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
| Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | |||
FEATURES:
1.Special ultra thin blowing tube housing and fan, match with rotatable embedded stainless steel nozzle, greatly increased the space utilization and blowing tube effect.
2.Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
3.Duration for showering can be adjusted from 0 second to 99 seconds with time display . It is easy to operate with button touch switches.
4.Floor and nozzles are made of quality stainless steel.
5.99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
6.Air velocity can up to 25m/s. professional and fast design, non-standard products.

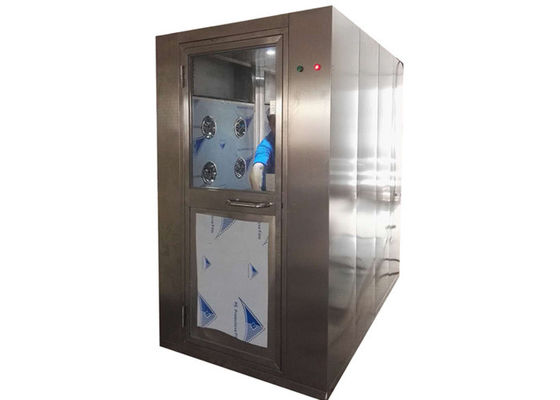

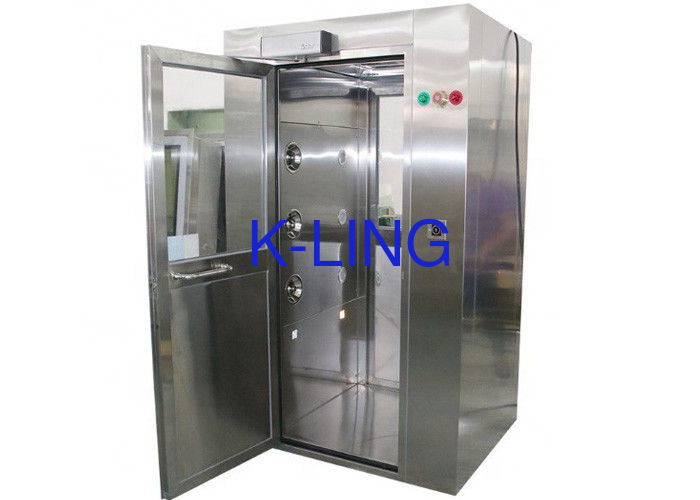

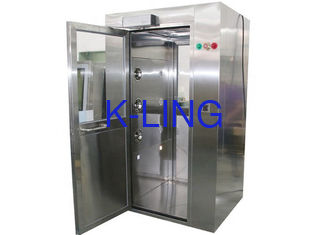

Product show
