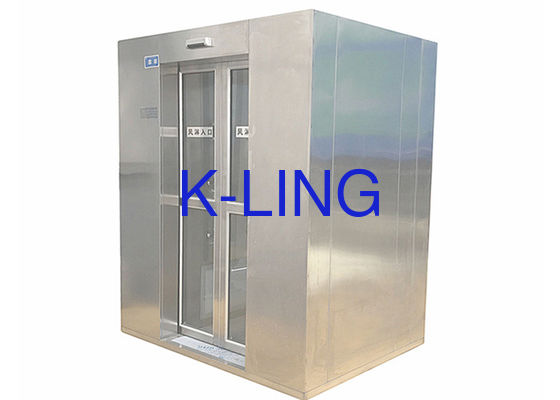

Stainless Steel Material Clean Room Air Shower For Clean Room Entrance
Application:
Air shower is widely used in LCD and Optoelectronic Display, PCB, microelectronics, dust-free coating, aseptic packaging, medical care, Pharmacy,auto glass and precision parts.
FEATURES:
1,Fully auto controlled by computer, 2 electronic interlocking door, automatically blow and shower.
2,Duration for showering can be adjusted from 0 second to 99 seconds with time display and voice prompt. It is easy to operate with membrane touch switches.

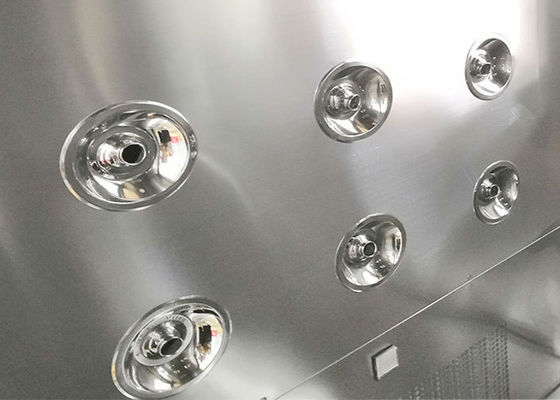

3,Floor and nozzles are made of quality stainless steel.
4,99.99%@0.3μm, Efficiency can reach 99.99%@033μm with pre filter and hepa filter.
5, air velocity can up to 25m/s. professional and fast design, non-standard products.
Design drawing
Alternative configuration:
a. Stainless steel construction
b. Intercom
c. Ultraviolet sterilizing lamp/yellow light
d. Buzzer
e. Non-flooring-plate design (easy for light- weight vehicle in and out)
f. Automatic door
g. Non-standard air shower cleanroom is available
Parameter
| Model | KEL-AS-1300-P1 | KEL-1300-PQ1 | KEL-1300-P2 | KEL-1300-P3 |
|
Outer Dimensions W×D×H(mm) |
1300×1000×2100 | 1300×1500×2100 | 1300×2000×2100 | 1300×3000×2100 |
|
Inner Dimensions W1×D1×H1(mm) |
800×930×1960 | 800×1430×1960 | 800×930×1960 | 800×930×1960 |
| Speed (m/s) | 25~27 | |||
| Nozzle No. | 12 | 18 | 24 | 36 |
| Structure | Cabin: Pre-painted cold work steel sheet.Stainless steel | |||
| Door: 5mm glass and built-in automatic door closer | ||||
| Lighting | LED, built-in type | |||
| Dust Collection Efficiency | Over 99.99% 0.3μm D.O.P TEST | |||
| HEPA Dimension ×Quantity | 595×595×80×2pcs | 595×595×80×2pcs | 595×595×80×4pcs | 595×595×80×4pcs |
| Showering Time | 0-99s adjustable(FACTORY SETTING 10S) | |||
| Power Supply | 380V 50Hz, 3Phase/220V 60Hz 1Phase | |||
