80%RH F8 F9 V Bank Filter ABS Plastic External Frame

80%RH F8 F9 V Bank Filter ABS Plastic External Frame
80%RH F8 F9 V Bank Filter ABS Plastic External Frame 80%RH F8 F9 V Bank Filter ABS Plastic External Frame

Large Image :  80%RH F8 F9 V Bank Filter ABS Plastic External Frame

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-VF
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Efficiency: F7/ F8/ F9 External Frame: ABS Plastic
Size: Customizable Pack: Customizable
Warranty: 1 Year Original: GuangZhou China
High Light:

F9 V Bank Filter

,

F8 V Bank Filter

,

Polypropylene v bank air filters

V Bank Absolute F9 Efficiency Air Filter/ F9 V Bank Filter ABS Plastic External Frame







Application



V bank air filter can be used in air volume air ventilation systems, pharmaceuticals, hospitals, food, clean room filtration system. Can be used in front-end, high end filtration systems or ultra-high efficiency filter pre-filtration system.

This V Type filter users increasingly being recognized and affirmed. Because of its small size, large filtration area, long life and many other advantages, many have the economic ability of the enterprise has been widely used. And gradually replace the original bag or filter separators.



Structure:



Polypropylene or ABS plastic frame metal frame (available with flange), no partition filter combination structure, effective sealant.



Filter Media:



Ultra-fine glass fiber or glass fiber filter paper.





Material And Performance:



External frame ABS Plastic, Galvanized, Aluminum Frame ,Stainless Steel
Filter medium Fiberglass
Partition Hot Melt
Sealant Polyurethane adhesive
Max. temperature 80°C
Max. humidity 80%RH





Specification And Technical Parameters:



Model NO.

Size

L*W*H (mm)

Rated air flow (m³/h) Initial resistance (pa) Efficiency(colorimtic method)
HA-FV 592*287*292 1800 ≤120 F6,F7,F8,F9
HA-FV 592*592*292 3000
HA-FV 592*490*292 2500
special size can be according to customer special requirement





Picture show

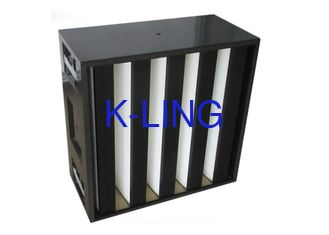

80%RH F8 F9 V Bank Filter ABS Plastic External Frame 0

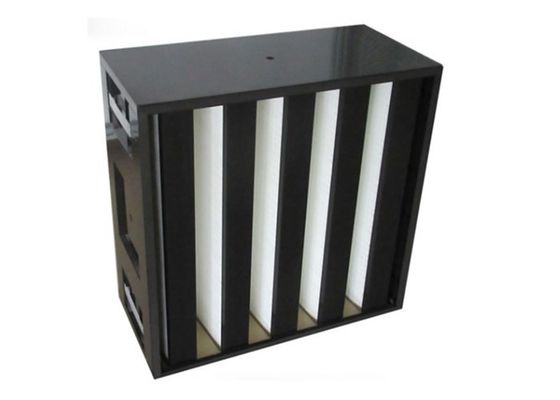

80%RH F8 F9 V Bank Filter ABS Plastic External Frame 1
