| Door: | Double Sliding Door | Control: | PLC Control System |
|---|---|---|---|
| Design Drawing: | Free Design Drawing | Name: | Air Shower Tunnel |
| Warranty: | 1 Year | Original: | GuangZhou China |
| High Light: | Sliding Door Air Shower Tunnel,PLC Air Shower Tunnel,SUS201 air shower room |
||

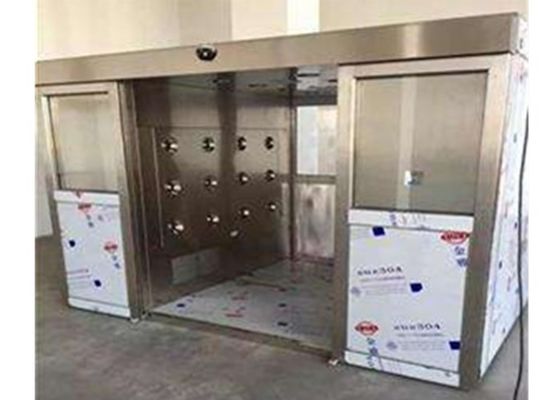

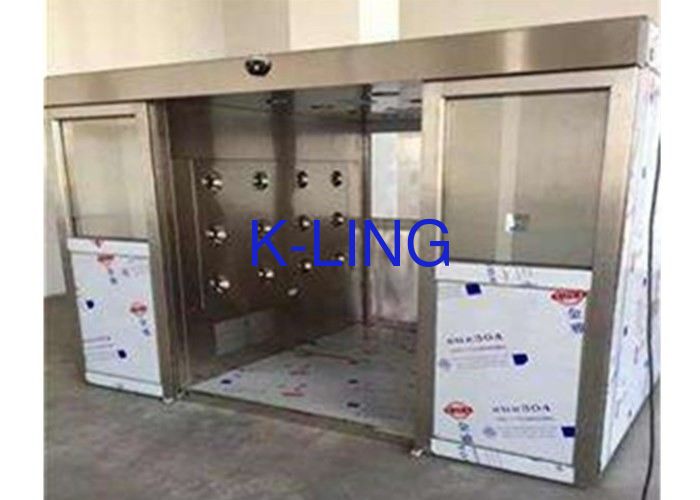

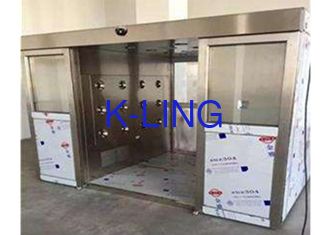

Auto Double Sliding Door Air Shower Tunnel PLC Control System Free Design Drawing
This type air shower room is using auto sliding door. There are sensor on the top of the extrance and exit door. When the entrance door sensor sense someone or goods, the door will open automaticly. After goods or people enter the air shower tunnel, the sensor can't sense anything. It will close. Then the blowing system start to work. After the blowing, the exit door wil open. So people or goods can pass through the air shower tunnel.
1. Infrared sensor auto sliding door or botton
2. ULPA filter
3. SUS201/316L/ 304. powder coated steel. sandwich panel
4. No base plate, it is easy for truck to pass (called cargo air shower)
5. Yellow fluorescent lamp / UV lamp / Emergency switch
6. Anti-static system
7. Explosion-proof fan and wire
| Product | Auto sliding door air shower tunnel |
| External dimensions (mm) | W1500*D1000*H2100MM |
| Internal dimensions WxHxD(mm) | W1000*D1000*H1950MM |
| Doors | auto silding door, double door or single door all OK |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | 4-5 person one turn |

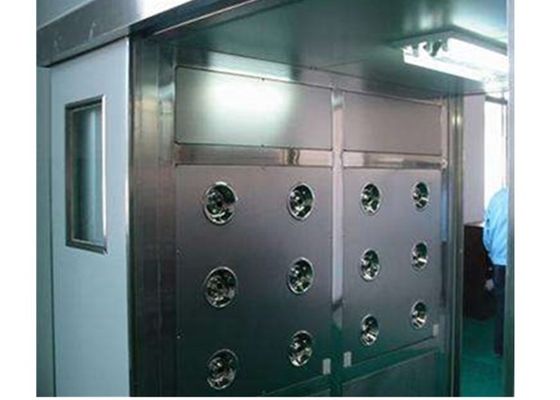

| Nozzles | left, right, top side all have nozzels |
| Blower fan | 2 sets |
| Blow power(W) | 800W |
| HEPA filter efficiency | H14 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 1x 20W |
| Nozzle diameter | 25mm |
| Air shower time | 0-99 s Adjustable (factory set is 12s) |
| Spurt wind speed | more than 25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
