Double Auto Sliding Door L Type Air Shower Tunnel Free design Drawing
This production is a air shower tunnel. It is designed as a L type. It means the entrance door is at the left or right side. The exit door is at the back side.
The L type air shower tunnel is special customized according the factory site. The door open way is aotumatic double sliding door. The other type door, such as swing door, pvc fast-rolling door also avaliable.
1. Infrared sensor auto sliding door, botton
2. ULPA filter
3. SUS201/316L/ 304. powder coated steel. sandwich panel
4. No base plate, it is easy for truck to pass (called cargo air shower)
5. Yellow fluorescent lamp / UV lamp / Emergency switch
6. Anti-static system
7. Explosion-proof fan and wire
| Product | L Type Air Shower Tunnel |
| External dimensions (mm) | W1500*D4000*H2100MM |
| Internal dimensions WxHxD(mm) | W1000*D4000*H1950MM |
| Doors | left side is double auto sliding door, back side is single swing door |
| Door closer | 2 sets (Outside) |
| Lock | 2sets of electric magnetic locks interlocked |
| Suitable person | more than 10 person one turn |
| Nozzles | left, right, top side all have nozzels |
| Blower fan | 8 sets |
| Blow power(W) | 800W |
| HEPA filter efficiency | H14 |
| Photolectric sensor | ORMON 1 PCS |
| Fluorescent Lamp | Philips 4x 20W |
| Nozzle diameter | 25mm |
| Air shower time | 0-99 s Adjustable (factory set is 12s) |
| Spurt wind speed | more than 25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |

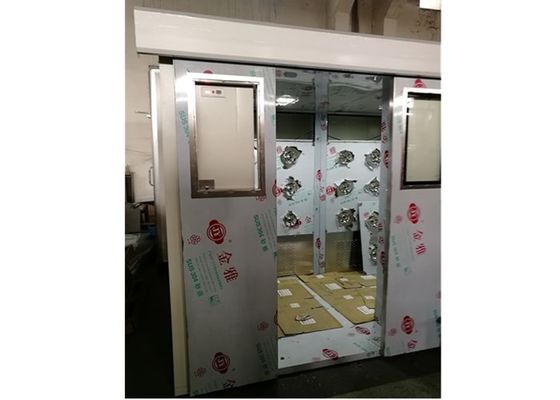

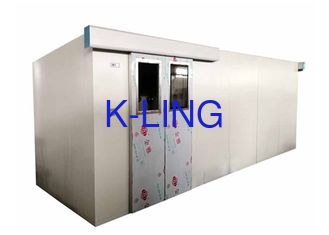

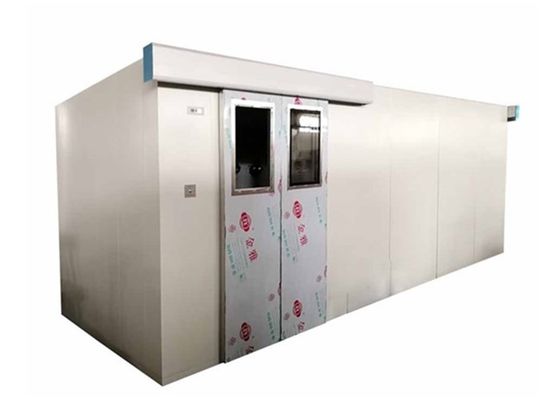

Display
