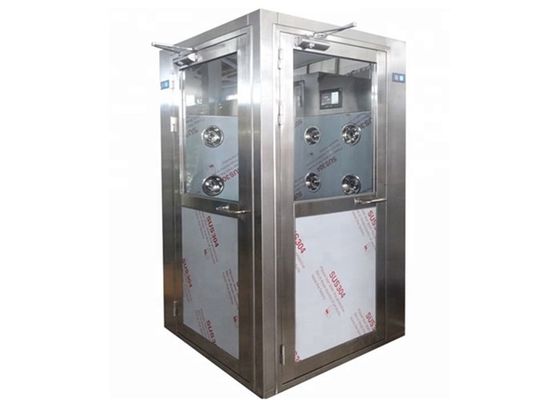

L Type Door Direction Air Shower Clean Room SUS 304/ 316L Material
Features:
1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.
(One door in open state, the other door must in close state. When people enter air shower, the system will shower automatically by photoelectric sensor)
2. Air shower time from 1 to 99 seconds which can be adjustable
3. Adopt Pre-filter and HEPA filter
4. The door, bottom-board, nozzles are used of stainless steel, good appearance.
5. When air shower is used to pass cargo, it is without bottom-board.
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter
As Following Is Our Standard Type Air Shower Room. Customer's Design Is Also Available
| Model | KEL-AS1300P1 |
| External size (W*D*H) | 1300*1000*2180(mm) |
| Work zone (W*D*H) | 800*930*1910(mm) |
| Persons per cycle | 1-2 person |
| Air shower Duration | Factory set at 15 second (adjustable) |
| Material | All cabinet is SUS304 (t=1.0mm) |
| Fan consumption | 0.75KW*2set |
| Air flow of fan(m3/h) | 1200m3/h |
| Fan run (r/min) | 2800r/min |
| Nozzle in stain less steel | 16 pcs (Three side blowing. 6 pcs on the left, 6 pcs on the right, 4 side on the top) |
| Wind speed(m/s) | 25m/s |
| Noise level(dB) | <62dB |
| Anti-static device | 1 set |
| LED Fluorescent Lamp | 20wx1 set |
Door direction
