| Material: | Plexiglass Wall | Frame: | SUS 304 |
|---|---|---|---|
| Application: | E-cigarette Production | Name: | Softwall Clean Room |
| Other Name: | Modular Clean Room | Warranty: | 1 Year |
| High Light: | Plexiglass Wall Softwall Clean Room,E Cigarette Softwall Clean Room,Class 10000 Modular Clean Room |
||
E-cigarette Production Softwall Clean Room/ Modular Clean Room Plexiglass Wall
Introduction

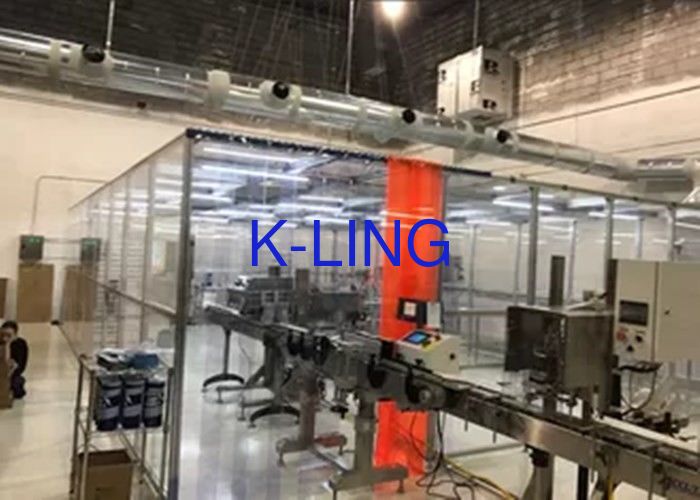

This clean room made for a customer from West Columbia,USA. He is engaged in the production of electronic cigarettes.After we get his inquiry, we supplied this solution service based on their production environment. The clean room help them improve quality of E-cigarette and good sales. It has better efficiency with air shower using ,As following enclose parameters of this clean room for your reference
| Size | 6000*9144*2350 |
| Purification class | Class 10000 |
| Frame | Aluminum profile, size: 50*50mm |
| ffu no | 8PCS |
| ffu size | 1175*575*300mm |
| wall | Plexiglass ,T:5mm |
| Voltage | 120V/60HZ |
| Led | 36pcs |
| Control box | 1pcs |
| ffu no | 8 sets |
| air shower | Enternal size:1290*1000*2050,internal size:790*920*2050 |
| sus304 material,380v/50hz | |
| 12nozzles,English voice control panel,E-stop swift |
Design Drawing
Assembly And Using:
we supply the installtion instruction as well as assemble video and picture to customer. He can easily install the clean room.
