| Material: | Stainless Steel | Name: | Weighting Booth |
|---|---|---|---|
| Other Name: | Dispensing Booth | Application: | Pharmaceutical Clean Room |
| Clean Level: | ISO 5 | Original: | GuangZhou China |
| High Light: | 800 lux Clean Room Dispensing Booth,ISO 5 Clean Room Dispensing Booth |
||

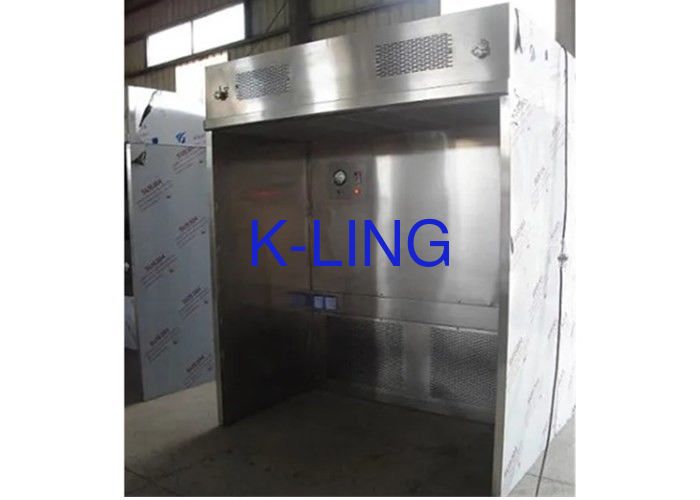

Pharmaceutical Clean Room Stainless Steel Weighting Booth/ Dispensing Booth
Introduction
Weight room is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
FEATURES
1.Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
2.Differential pressure gauge is equipped to real-time monitor the filters.
3.Unique designed air duct effectively controls the noise.
4.Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products.
5.Intelligent control mode and alarm system ensure the reliability of running.
6.Smooth transitions of wall and ground can eliminate the blind angle.
7.Customized design is welcome.
Parameter
| Model | KEL-DB-1400 | KEL-DB-1600 | KEL-DB -1800 |
| Clean Level | ISO 5 (Class 100), Class A | ||
| HEPA Filters | 99.999% efficiency at 0.3 um | ||
| Air volume | Supply air volume: ≤7500m3/h, Exhaust air volume: ≤2250m3/h; Adjustable |
||
| Exhaust air volume: | ≤2250m3/h; Adjustable | ||
| Material | Fully stainless steel 1.2mm | ||
| Air Velocity | 0.35~0.65m/s, adjustable | ||
| Noise | ≤75db | ||
| Illumination | ≥800lux | ||
| UV Lamp | Emission of 253.7nm | ||
| Power Supply | 110/220V±10%, 50/60Hz | ||
| Consumption | 0.55KW*2 | 0.55KW*2 | 0.55KW*2 |
| Weight | 500KG | 550Kg | 600Kg |
| Work Area Size (W*D*H) | 1300*1000*2000 | 1500*1000*2000 | 1700*1000*2000 |
| Overall size (W*D*H) | 1400*1400*2400 | 1600*1400*2400 | 1800*1400*2400 |

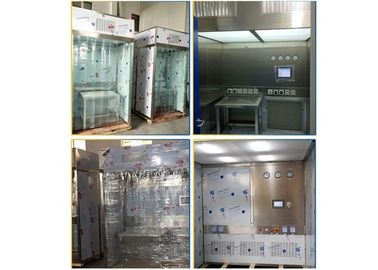

Display
