Product Details:
Payment & Shipping Terms:
|
| Brand Name: | KEL | Material:: | SUS 304/ SUS 316 |
|---|---|---|---|
| Filter: | H14 | Application: | GMPs Clean Booth For Phamaceuticals |
| Warranty: | 1 Year | Place Of Origin:: | GuangZhou China |
| High Light: | H14 Dispensing Booth,GMPs Dispensing Booth,HEPA Class 100 Clean Room |
||

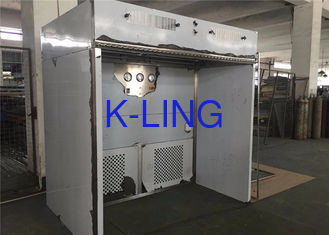

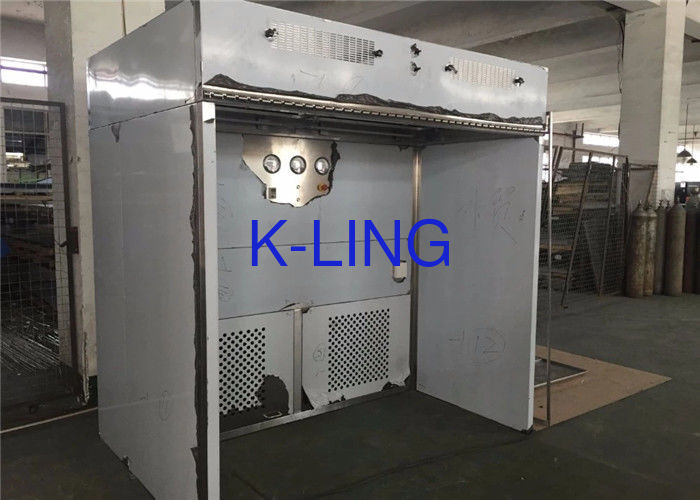

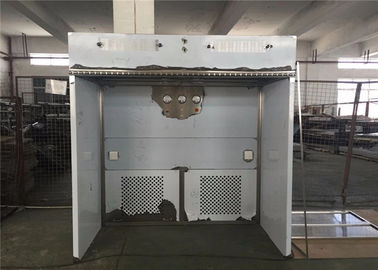

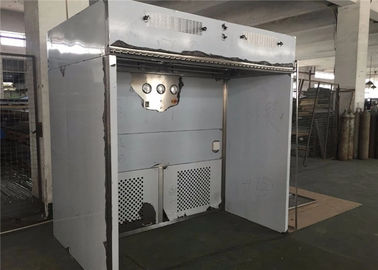

H14 Sampling Dispensing Booth GMPs Clean Booth For Phamaceuticals/Clean Room Class 100
Dispensing Booth Introduction
Dispensing booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down draught technique. The unit eliminates powder contamination to protect the operator and the surrounding environment.
Dispensing booth is also called sampling booth or weighing booth.
FEATURES
1. Customized design is welcome.
2. Noise level: 57-65dB
3. Power supply: 110V-220v/50-60HZ. 380V/50HZ
4. Material: Stainless steel
Standard Model Technology Parameter:
1. Smooth transitions of wall and ground can eliminate the blind angle.
2. Differential pressure gauge is equipped to real-time monitor the filters.
3. Intelligent control mode and alarm system ensure the reliability of running.
4. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area.
5. Uniform flow design of main working area can protects the operators and prevent environmental pollution
and cross contamination of products.
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
