Product Details:
Payment & Shipping Terms:
|
| Name: | Softwall Clean Room | Other Name: | Clean Booth/ Modular Clean Room |
|---|---|---|---|
| Purification Rank: | Class 1000 (ISO 6) | Application: | Air Cleaning In A Small Area |
| Corner Treatment: | Aluminum Profile | Original: | GuangDong China |
| High Light: | ISO 6 Softwall Clean Room,FFU Softwall Clean Room,ISO 6 Softwall Clean Booth |
||

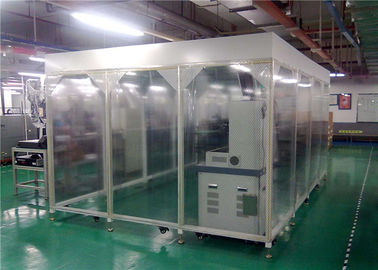

Class 1000 (ISO 6) Clean Booth Modular Clean Room/ Softwall Clean Room
Introduction
Clean Room Modular is a kind of clean room, it can quickly improve the cleanliness of the equipment. Because of its low cost, convenient and flexible asembly, it is widely used in optical, electronic assembly line work, laboratories, assembly area local area purify occasions. The clean booth adopt to FFU generating winds, with industrialize aluminum(stainless steel or painting steel) as it's frame and static-free sticker(or carbon glass), it can make the clean room's cleanliness attain 10-100K.
Configuration:
| Parameter | Softwall Clean Booth | Hardwall Clean Booth | |
| Cleanliness | From Class 100 to Class 1000,000 | ||
| External Dimension | As per requirement | ||
| FFU | Dimension | 2'X4' | |
| Cabinet Material | Stainless Steel | ||
| Power source | 110V/60hz/av/dc, 220V/60HZ/AV/DC | ||
| HEPA Filter | H14 Hepa filter | ||
| Frame Material | Stainless Steel | ||
| Wall Material | Anti-static soft PVC wall 106~109Ω | Anti-static acrylic 106~109Ω | |
| Lighting | Lamps | Available in LED and T5 | |
| Air condition | As per requirement | Available in constant temperature air conditioner/constant temperature and humidity conditioner | |
Besides above configuration, we can customized as required.
Parameter
|
Model |
KEL-SCB-1200 |
KEL-SCB-1500 |
KEL-SCB-1800 |
|
External Dimension (W×D×H)mm |
1200×1500×2300 |
1500×1500×2300 |
1800×1500×2300 |
|
Internal Work Zone (W×D×H)mm |
1100×1200×1900 |
1400×1200×1900 |
1700×1200×1900 |
|
Clean Class Level |
100class(U.S.Federal 209E Standard) |
||
|
Air Velocity |
0.3-0.5m/s |
0.3-0.5m/s |
0.3-0.5m/s |
|
Noise |
≤65dB |
≤65dB |
≤65dB |
|
Vibration Half Peak |
≤5um |
≤5um |
≤5um |
|
Light |
40W×2 |
40W×2 |
40W×2 |
|
Power Supply |
220V/50Hz |
220V/50Hz |
220V/50Hz |
|
Material |
Epoxy powder coated steel/full stainless steel |
||

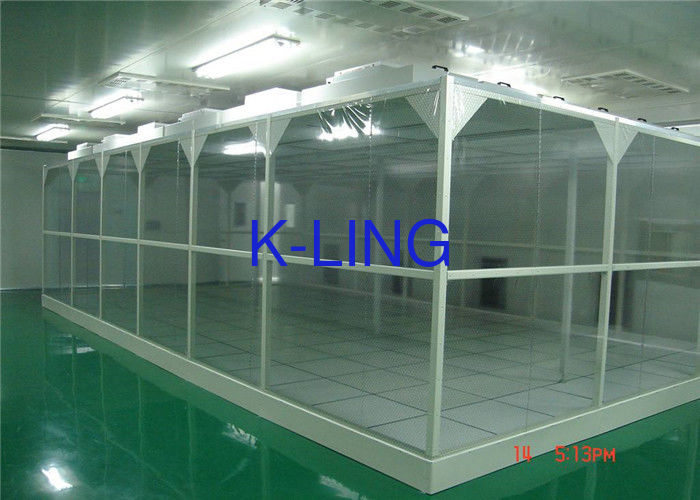

Case display
