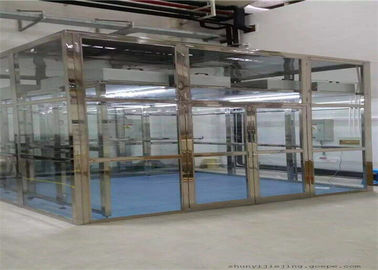

SUS 304 Frame Vertical PVC Softwall Clean Room

SUS 304 Frame Vertical PVC Softwall Clean Room
SUS 304 Frame Vertical PVC Softwall Clean Room SUS 304 Frame Vertical PVC Softwall Clean Room

Large Image :  SUS 304 Frame Vertical PVC Softwall Clean Room

Product Details:
Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-SCB series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Detailed Product Description
Name: Softwall Clean Room/ Modular Cleanroom Frame: SUS 304
Cleanness: Class 10000 Door: Air Shower Door/ Steel Airtight Door
Corner Treatment: Aluminum Profile Original: GuangDong China
High Light:

Vertical PVC Softwall Clean Room

,

SUS 304 Softwall Clean Room

Class10000 Vertical Softwall Clean Room/ Modular Cleanroom With SUS 304 Frame





Introduction



Description:

With FFU(fan filter unit)as the core,clean booth provides a high level cleanliness.which draws in contaminated air from the top of the module,and exhausts filter clean air vertically in a unidicetional(Laminar) air stream at its base.is a self-contained fan and filter module for clean room applications.

It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness.





Feature



(1) Assembly structure design,easy installation and easily moved;

(2) Directional wheels can be installed,suitable for small building and high cleanliness area;

(3) Modular design:can be as small as several square meter and can be as large as hundreds of square meters;

(4) It is large useful and effective area,while compared with traditional clean room,it has such feature like low investment,high return and stable ;

(5)Customized design is welcome;



Customized:we could according to your requirement to design for you.





Parameter



Parameter Softwall Clean Booth(PVC) Hardwall Clean Booth(Toughened glass,color steel panel)
Cleanliness From Class 100 to Class 100,000
External Dimension As per requirement
FFU Dimension 2*2/2*4/4*4
Cabinet Material Stainless Steel
Power source 110V/60hz/av/dc, 220V/60HZ/AV/DC
HEPA Filter H14 Hepa filter
Frame Material Stainless Steel
Wall Material Anti-static soft PVC wall 106~109Ω Anti-static acrylic 106~109Ω
Lighting Lamps Available in LED and T5
Air condition As per requirement Available in constant temperature air conditioner/constant temperature and humidity conditioner
Class Level Model Inner dimension Number of Air volume(m3/h)
W * D * H (mm) FFU
Class100 KEL-SCB6 * 8 2000 * 3000 * 2200 6 6600
KEL-SCB 8 * 12 2440 * 3660 * 2200 12 13200
KEL-SCB8 * 16 2450 * 4880 * 2200 16 17600
KEL-SCB8 * 20 2440 * 6100 * 2200 20 22000
Class 1000 KEL-SCB6 * 8 2000 * 3000 * 2200 2 2200
KEL-SCB8 * 16 2440 * 4880 * 2200 4 4400
KEL-SCB12 * 16 3660 * 4880 * 2200 6 6600
KEL-SCB20 * 24 6100 * 7300 * 2200 12 13200
Class 10000 KEL-SCB6 * 8 2000 * 3000 * 2200 1 1100
KEL-SCB 8 * 16 2440 * 4880 * 2200 2 2200
KEL-SCB 12 * 16 3660 * 4880 * 2200 4 4400
KEL-SCB 20 * 24 6100 * 7300 * 2200 8 8800





Case display

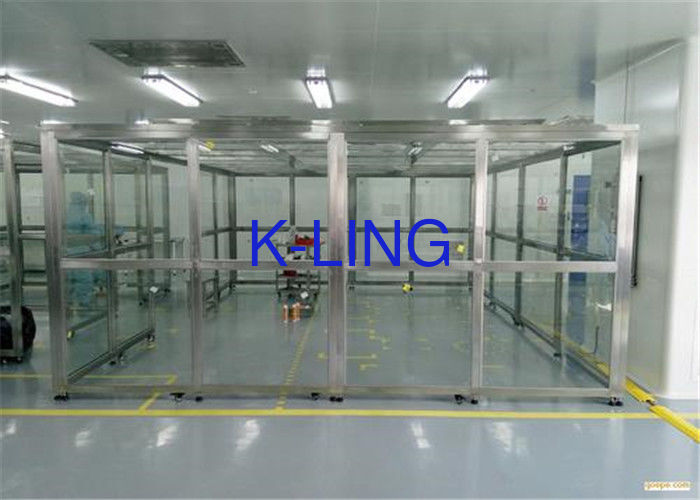

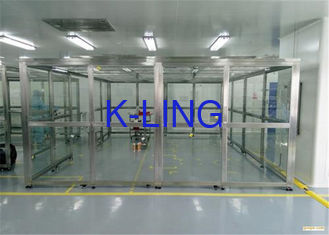

SUS 304 Frame Vertical PVC Softwall Clean Room 0

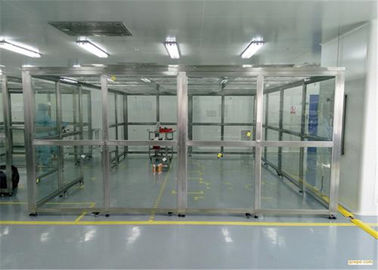

SUS 304 Frame Vertical PVC Softwall Clean Room 1
