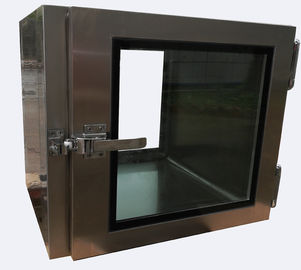

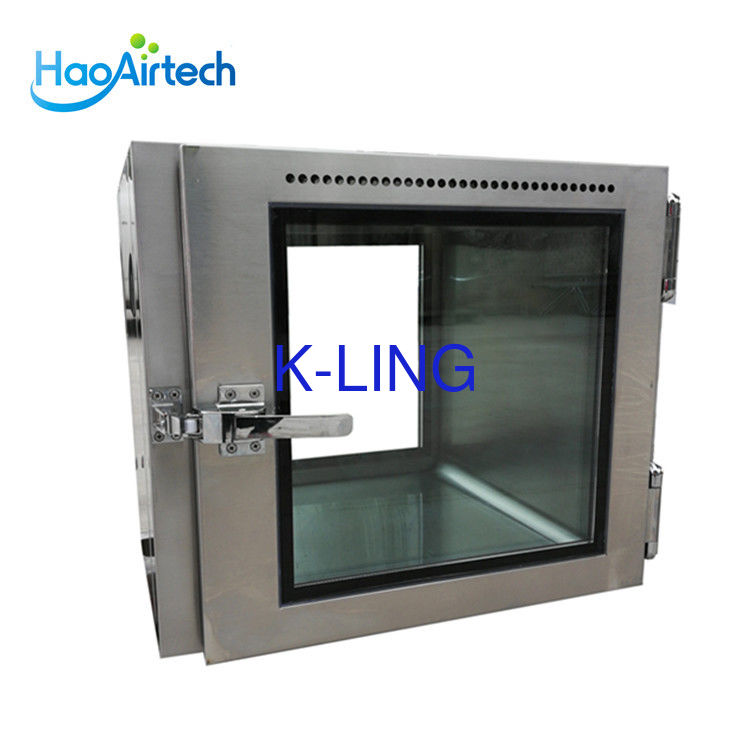

Electrical Interlock Cleanroom Pass Box

Electrical Interlock Cleanroom Pass Box
Electrical Interlock Cleanroom Pass Box Electrical Interlock Cleanroom Pass Box Electrical Interlock Cleanroom Pass Box Electrical Interlock Cleanroom Pass Box

Large Image :  Electrical Interlock Cleanroom Pass Box

Product Details:
Place of Origin: China
Brand Name: Haoairtech
Certification: CE
Model Number: HA-PBD500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Detailed Product Description
Brand: Haoairtech Material: 1: Entirety Sus304.(T=1.2/1.5mm) 2: Entirety Sus201.(T=1.2/1.5mm) 3: External Is Steel With Power Coated, Internal Is SUS304(T=1.2/1.5mm) 4: External Is Steel With Power Coated. Internal Is SUS201(T=1.2/1.5mm)
MODEL: HA-DPB600 External Size (mm) (W*D*H): 760x600x690mm
Work Zone (mm) (W*D*H): 600x600x600mm Purification Rank: Class 100
UV Light: 1 Piece
High Light:

clean room pass through box

,

Pass Thru Box

Stainless Steel Pass Box Static Type Electrical Interlock Clean Room Pass Through Box



Introduction

Pass Boxes are double-door box-shaped devices that are used when materials are brought into the Cleanroom. Similar to Air Showers, they are structured so that both doors cannot simultaneously be open, so they function as an airlock insulating the Cleanroom from the outside air. Models featuring Air Shower functions and models featuring Clean Unit functions are also available.



Operation Step

1. The door of the normal status is closed. When the material is delivered, the transmitter first rings the doorbell.

2. When the other party answers, the door is opened again. After the material is sent in, the door is closed immediately, and the

receiver opens another door.

3. After removing the material, close the door. It is strictly forbidden to open both doors at the same time.

4. After the operation of the transfer window, the cleaning work should be carried out and disinfected regularly.



The pass box material could be made of stainless steel 304 or 316, dynamic type and static type.



Function

It has the function of air valve to prevent high pressure to leak in the clean room.



Characteristic

  1. Adopts polish stainless steel inside, which is flat, neat and wearable. The surface material of pass box is cold rolled steel or stainless steel.

  2. Doors in two sides with mechanical or electronic interlock device enable two doors can't be in the open state at the same time.

  3. Pass box with special sealing strips to guarantee the airproof.





OEM

Customized design is available.



Products Parameter:

MODEL HA-DPB600
External size (mm)
(W*D*H)
760x600x690mm
Work zone (mm)
(W*D*H)
600x600x600mm
Purification rank Class 100
Material
(Option)
1: Entirety Sus304.(T=1.2/1.5mm)
2: Entirety Sus201.(T=1.2/1.5mm)
3: External is steel with power coated, Internal is SUS304(T=1.2/1.5mm)
4: External is steel with power coated. Internal is SUS201(T=1.2/1.5mm)
Control system 1: Gel Sealant mini-pleats HEPA air filter so that pass the DOP test without any problem.
2: Pass Box inside bottom corner is round shape without any dust
accumulation .
3: Double layer vacuum glass have very good appearance
4: Software computer interlocking door with long time using life
5: Air speed is 0.45m/s adjustable
UV light 1 PCS
Power supply 220v/50HZ
packing size (mm) 800x870x1300mm
Packing material Standard Export Poly wood Packing(Fumigant free material)



Pass Box Outlook:

pass box5

pass box4
