Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame

Certification
China KeLing Purification Technology Company certification
China KeLing Purification Technology Company certification
Customer Reviews
Keling had successfully supplied us following products on 25 Oct.2017 against PO NO.M170807; Their supplied Air Filters have been working satisfactorily since installation.We are satisfied with their products.

—— SIMPOR PHARMA

Since we do coopertae with them, they always offer good quality and keep the delivery on time to us, we do appreicated for their kind support !

—— Nasir

This is to certify that we bought U type air shower tunnel, Air Shower and HEPA filter, Secondary air filter ,perfilter for our project from KeLing Purification Technology Co. Ltd, 3C01 Tian Feng Commerce Square, Mid Building, No. 133, Baiyun AV, Baiyun Disctrict , Guangzhou , GuangDong, China against Contract No: 2014/4119005942 in October 22, 201

—— IATEC,Argentina

Product arrived faster than expected and they sent something special in addition to what I ordered. Nice people and fast service!

—— Mohammed Saad

I'm Online Chat Now

Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame

Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame
Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame

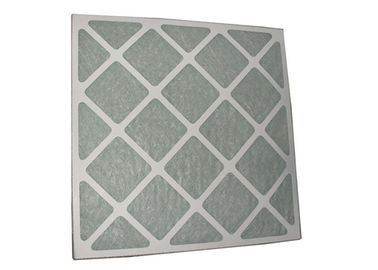

Large Image :  Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame

Product Details:
Place of Origin: CHINA
Brand Name: K - LING
Certification: CE , RoHS
Model Number: KEL - CP
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiation
Packaging Details: Carton Packing
Delivery Time: 7 - 10 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1000pcs / month
Detailed Product Description
Name: Cardboard Frame Primary Air Filter Efficiency: G2
Dimension: 595X595X46mm Media Area: 0.94 ㎡
Dust Holding: 188g Initial Resisitance: <30pa
Finally Resistance: 100-200
High Light:

pleated media filter

,

pleated air filters hvac

Cheap Price Primary Pleated Panel Air Filter With Cardboard Frame



Introduction :



Carboard frame primary air filter is a disposable filter , because of its low resistance , large dust capacity and low cost , it is widely used in the primary air filter . It is mainly made of synthetic fiber material , which has good filtering effect and meets the filtering requirements . The main purpose of using air filter is to make air clean up to standard . The principle is to capture and absorb dust particles of different particle sizes in the air , so as to improve the air quality and purify the air .





Application :

1.  Central air conditioning fresh air unit and ventilation system .

2.  Pre - filtration system of high efficiency filters .

3.  Pre - filtration of centralized ventilation systems widely used in office buildings, shopping malls, hospitals, airports and general industrial buildings or clean rooms .



Features :

1. Used for clean room conditioning system, pre-filtration through fresh air venting units, and exterior air conditioning connection

2. Primary filtration of central air conditioning system

3. Pre-filtration at the intake of Air purification equipment

4. Primary filtration in a filtration system

5. Ventilation system for outdoor and other harsh environments

6. Pre-filtration in Ventilation system for outdoor fire-proof and high temp resistance working condition



Photographs :

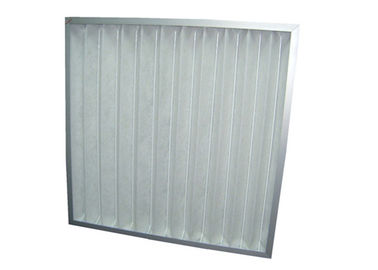

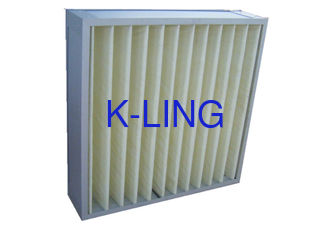

Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame 0Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame 1





Parameters :





Cardboard Frame Primary Air Filter

Dimension

(mm)

592x592x46 592x490x46 592x287x46 490x592x46 490x490x46

Air Flow

(m3/h)

2545 2110 1245 2106 1746
Media Area(㎡) 0.94 0.78 0.46 0.78 0.65
Dust Holding(g) 188 156 92 156 129

Initial Resistance

(pa)

<45 <45 <45 <45 <45

Finally Resistance

(pa)

150-250 150-250 150-250 150-250 150-250
Efficiency G4







ABOUT US :


GuangZhou HaoAir Purification Technology Co., Ltd is a professional manufacturer in air purification field for many years in China. Our products with good quality, reasonable prices and custom design.

Our main products include the cleanroom air shower , cargo air shower , static pass box , dynamic pass box , dispensing booth , vertical / horizontal laminar air flow clean cabinet , air filter,etc. AII of products can be customized.

Our customers come from Pakistan , Chile , India , Algeria , Nigeria, Italy , Czech Republic , ect.

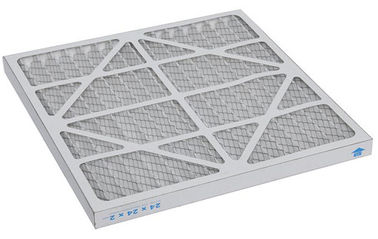

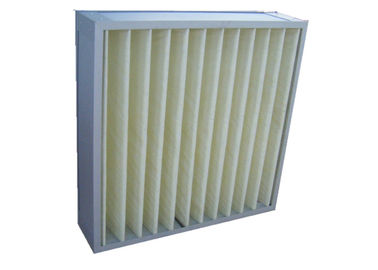

Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame 2Media Area 0.94 ㎡ Pleated Panel Air Filter With Cardboard Frame 3
