Payment & Shipping Terms:

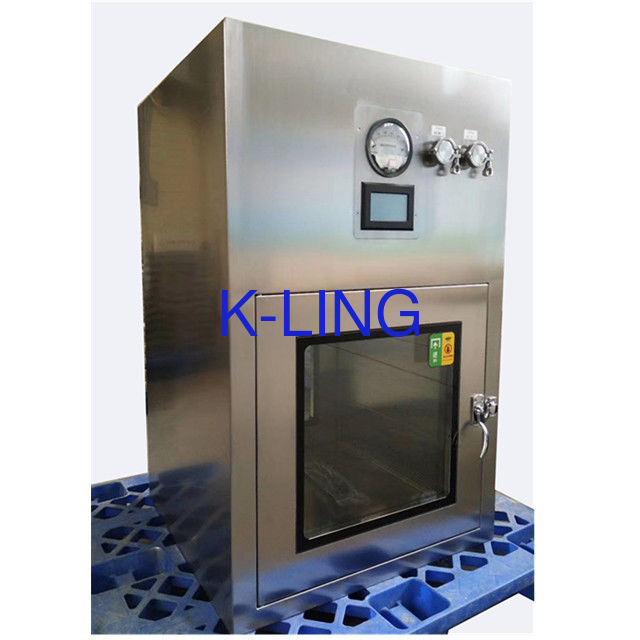

|Name:||Medical Dynamic Pass Box||Other Name:||Medical Dynamic Pass Thru|
|Inter Locker:||Electric Inter Locker||Material:||Entirety SUS304|
|Door:||Glass With SUS304 Frame||UV Light:||1pcs|
|Application:||Hospital||Purpose Of Use:||Prevent Virus Cross Contamination|
Static Cleanroom Pass Box for Pharmaceutical Industry 220V/60HZ
Quick Detai :
External size : 800x670x1150mm
Internal size : 600x600x600mm
Interlocker : Mechanical or electronic
Material: inside is SUS304/201. Outside is steel with power coated
Material thickness : 1mm/1.2mm
UV Light : 1 pcs
Power: 220V/50HZ or 220V/60HZ
1, laminar flow transfer window cleanliness requirements: B;
2, the internal and external double-layer shell, around the internal arc processing, ensure no gap junctions;
3, adopts the design of laminar air flow by giving next time pattern, design, manufacture of stainless steel (304) at the bottom of the punching and set the stiffener;
4, filter: early efficient filter USES G4, high efficiency filter use H14;
5, wind speed: after hepa filter out of the wind speed control in 0.38 0.57 m/s (below the outlet air flow efficient board 150 mm test);
6, the differential functions: display filter differential pressure (range efficient effect in 0-500 pa / 0-250 pa), accuracy + / - 5 pa;
7, control function: fan start/stop button, the configuration built-in electronic door interlock;Set the uv lamp, design a separate switch, when the door closes, two uv lamp should be for open;Set lighting, design a separate switch;
8, efficient filter can be separate from the upper body to remove and install, easy to maintain and replace filter;
9, set up the access port at the bottom of the transfer window, used for repair of the fan
10 ,noise: transfer window during normal running noise < 65 db;
11, efficient wind flow board: using 304 stainless steel plates.
External size (mm)
Internal size (mm)
1: Entirety Sus201/304.
Glass window size
Mechanical or electronic for your choose
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Factory test include:
--functional test and visual inspection
--electrical safety tests
--air velocity testing
--purification rank test (if need)
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Consumable parts illustration:
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
2: HEPA filter: each one should be replacement in each half and one years.
