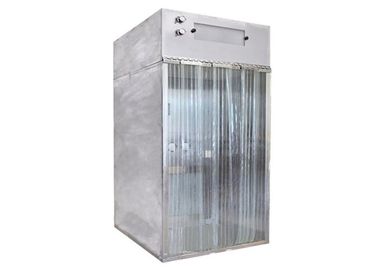

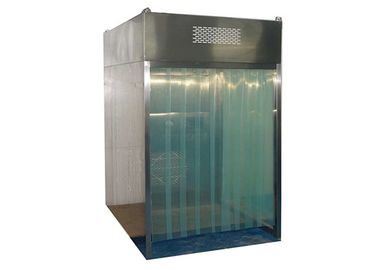

Clean Room Dispensing Booth SUS Material And Size Customizable
Introduction
The Dispensing booth, also known as Negative Pressure Room is a dedicated local decontamination unit that conforms to the latest version of GMP for the production of sterile formulation. It provides a vertical unidirectional airflow with a fraction (80% - 90%) of clean air circulating through the working area, and another fraction (10% - 20%) discharged to the vicinity of the working area to provide negative pressure to prevent dust spill and cross-contamination in the work area, in order to ensure a high degree of cleanliness of the working environment.
Customized
Customized sizes and function are available.
Advantages
Efficiency
continuous negative pressure to prevent cross contamination, and to ensure the high clean class level of the working area.
Uniform air flow
supply clean vertical unidirection airflow, creat a virtuous circle of air recirculation.
Flexibility
control panel control, easy maintainance and exchange of filters.
Durable
high quality materials to ensure the long life-span of the equipment.
Dispensing Booth Parameter
Customer's design is available.
| MODEL | KEL-DB1000 | KEL-DB1500 | KEL-DB1900 |
|
External size (mm) (W*D*H) |
1200x1500x2400mm | 1500x1700x2400mm | 2000×2200×2650mm |
|
Work zone (mm) (W*D*H) |
1100x1200x2000mm | 1400x1200x2000mm | 1900×1900×2150mm |
| Purification rank | Class 100(ISO5) | ||
| Air speed | 0.2-0.7m/s | ||
|
Material (Option) |
1: Entirety Stainless Steel 201/304/316.(T=1.2/1.5mm) 2: External and internal side is steel with power coated. (T=1.2/1.5mm) |
||
| Intensity of illumination | ≥300 Lux | ||
| Noise level(dB) | <65dB | ||
| Filter step | 3 Step | ||
| HEPA filter | 99.995% @ 0.3um Gel sealant mini--pleats HEPA Air Filter | ||
| Secondary filter | F8 pocket air filter | ||
| Pre-filter Efficiency | 75%@5um | ||
| Power supply | 380V/50HZ OR 220V/50HZ | ||
| Packing material | Standard Export Poly wood Packing(Fumigant free material) | ||
