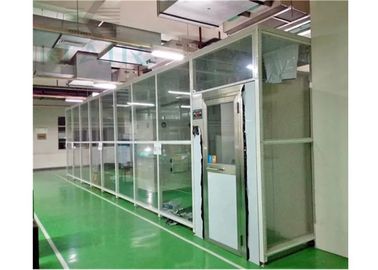

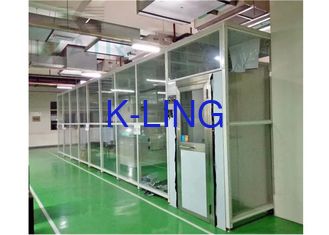

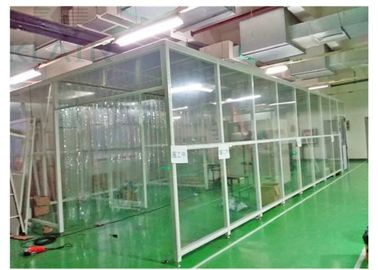

Easy Installation Softwall Clean Room / Clean Booth With Air Shower Door

China Easy Installation Softwall Clean Room / Clean Booth With Air Shower Door supplier
Easy Installation Softwall Clean Room / Clean Booth With Air Shower Door supplier Easy Installation Softwall Clean Room / Clean Booth With Air Shower Door supplier

Large Image :  Easy Installation Softwall Clean Room / Clean Booth With Air Shower Door

Product Details:

Place of Origin: CHINA
Brand Name: K-LING
Certification: CE
Model Number: KEL-LFB-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Plywood packing
Delivery Time: 7-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Name: Modular Softwall Clean Room Other Name: Clean Booth
Type: Clean Room Door: Air Shower Room
Door Material: SUS 304/ Powder Coated Steel Original: GuangZhou China

Modular Softwall Clean Room / Clean Booth With Air Shower Door





Applications:



Use FFU ( Fan Filter Unit) as the core, clean booth provides a high level of cleanliness. It is a good option to create a cleaner space within an existing normal room or a room with low-level of cleanliness. The air shower room is a passageway into and out of the clean room. It sprays the air filtered by the filter at a speed of 25m / s. Can effectively remove particles attached to the human body or objects. Keep the clean room environment at a high level of cleanliness.



Widely apply for LCM, CMOS Camera Module, Touch Play, Optical Module, Film, Bilogical Pharmacy, Packing and Food Processing.





Advantages:



  • Easy installation.
  • Low cost modularized design and easy upgrading
  • Assembly structure design, easily move.
  • Module design, clean booth can be as small as several square meters and can be as large as hundreds of square meters.
  • It has large useful and effective area; while compare with traditional clean room, it has such features like LOW investment, high return and stable.
  • Low noise level
  • High efficiency HEPA/ULPA filter





Specifications:



  • Cleanliness: From Class 100-10,000.
  • FFU Dimension: 1175x575x300mm
  • FFU Casing material: SUS
  • Power source: 110V/60Hz AC or 220V/60Hz AC
  • HEPA Filter: H13 or H14 or U15 ULPA Filter
  • Housing material: SUS or Aluminum
  • Wall material: Softwall ( Anti-static PVC curtain / PVC curtain)
  • Hardwall ( Anti-static acrylic / acrylic)
  • Lighting: Available in LED or T8
  • Accessories: Available in constant temperature and humidity



Dimensions:



Class Model Dimension (WxDxH)mm
*inner height
FFU Q'ty Airflow (m3/h)
Class 10-100 MCR4X4 1220X1220X2150 2 2300
Class 10-100 MCR4X8 1220X2440X2150 4 4600
Class 10-100 MCR8X8 2440X2440X2150 8 9200
Class 10-100 MCR8X12 2440X3660X2150 12 13800
Class 10-100 MCR8X16 2440X4880X2150 16 18400
Class 10-100 MCR8X20 2440X6100X2150 20 23000
Class 10-100 MCR12X12 3660X3660X2150 18 20700
Class 1000 MCR8X12 2440X3660X2150 9 10350
Class 1000 MCR8X16 2440X4880X2150 12 13800
Class 1000 MCR8X20 2440X6100X2150 15 17250
Class 1000 MCR10X12 3050X3660X2150 8 9200
Class 1000 MCR12X12 3660X3660X2150 10 11500
Class 1000 MCR12X16 3660X4880X2150 12 13800
Class 1000 MCR12X20 3660X6100X2150 16 18400
Class 10,000 MCR8X8 2440X2440X2150 2 2300
Class 10,000 MCR8X12 2440X3660X2150 2 2300
Class 10,000 MCR8X16 2440X4880X2150 4 4600
Class 10,000 MCR12X16 3660X4880X2150 5 5750

Other sizes as request.
